Chilled manhattan Units

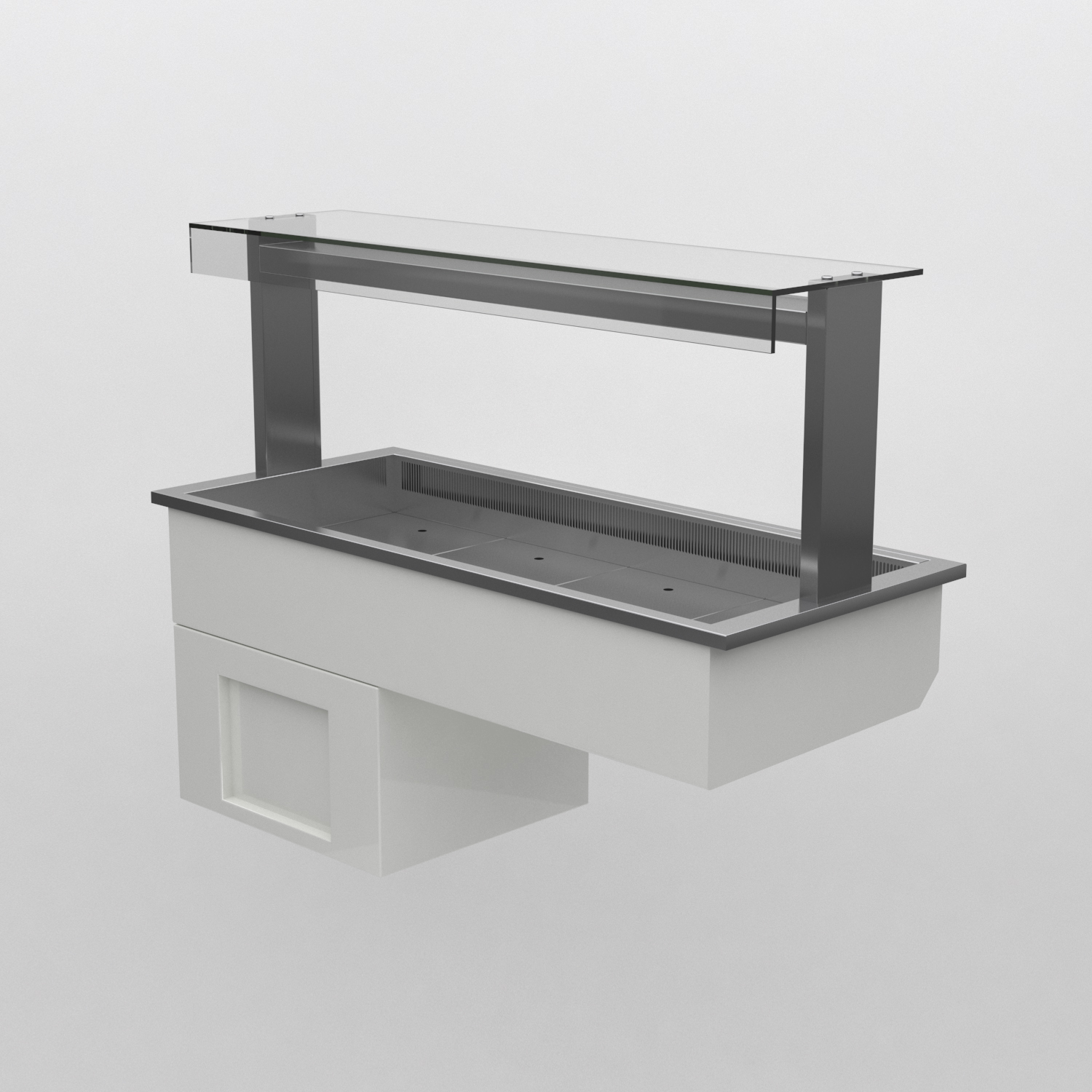

manhattan - chilled display well

manhattan - chilled display well

• Flat bed chilled well, which is perfect for a deli display of salads, drinks and fruit, as well as chilled meals.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• The angle of the display deck can be adjusted for enhanced presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
MCW2-GO 2/1 825 x 660 x 560h 91 1.4
MCW3-GO 3/1 1175 x 660 x 560h 108 1.7
MCW4-GO 4/1 1525 x 660 x 560h 128 1.9
MCW5-GO 5/1 1875 x 660 x 560h 141 1.9
MCW6-GO 6/1 2225 x 660 x 560h 158 2.2
Downloads: DWG

Downloads: DWG

MCW2-GO

MCW2-GO

MCW3-GO

MCW3-GO

MCW4-GO

MCW4-GO

MCW5-GO

MCW5-GO

MCW6-GO

MCW6-GO

Downloads: PDF

Downloads: PDF

MCW2-GO

MCW2-GO

MCW3-GO

MCW3-GO

MCW4-GO

MCW4-GO

MCW5-GO

MCW5-GO

MCW6-GO

MCW6-GO

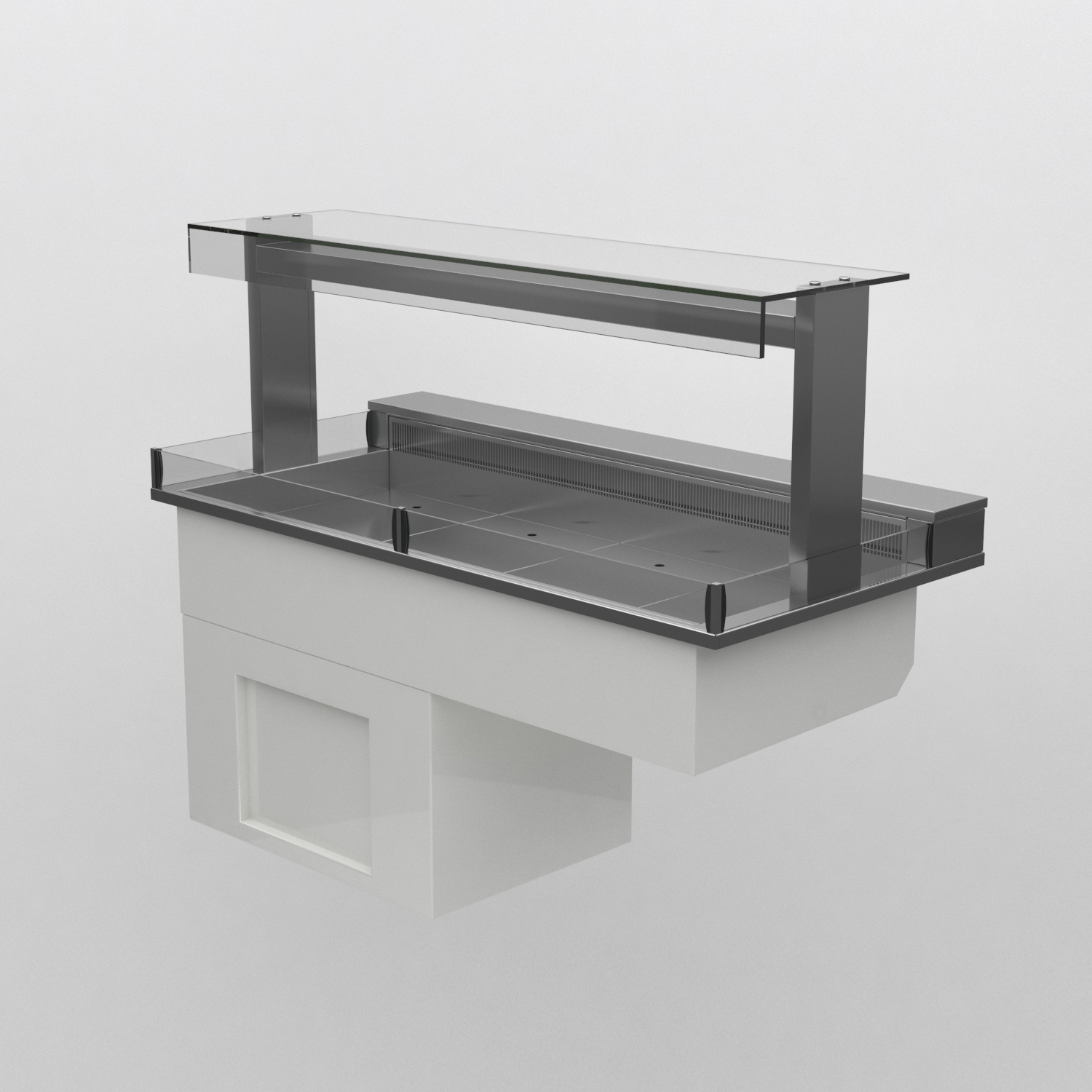

manhattan - chilled display deck

manhattan - chilled display deck

• Flat bed chilled deck, which is perfect for the display of salads, drinks and fruit.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• The angle of the display deck can be adjusted for enhanced presentation.
• Raised rear preparation shelf and glass riser to retain chilled air.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
MCDK2-GO 2/1 825 x 764 x 560h 124 1.4
MCDK3-GO 3/1 1175 x 764 x 560h 142 1.7
MCDK4-GO 4/1 1525 x 764 x 560h 168 1.9
MCDK5-GO 5/1 1875 x 764 x 560h 181 1.9
MCDK6-GO 6/1 2225 x 764 x 560h 198 2.2
Downloads: DWG

Downloads: DWG

MCDK2-GO

MCDK2-GO

MCDK3-GO

MCDK3-GO

MCDK4-GO

MCDK4-GO

MCDK5-GO

MCDK5-GO

MCDK6-GO

MCDK6-GO

Downloads: PDF

Downloads: PDF

MCDK2-GO

MCDK2-GO

MCDK3-GO

MCDK3-GO

MCDK4-GO

MCDK4-GO

MCDK5-GO

MCDK5-GO

MCDK6-GO

MCDK6-GO

manhattan - chilled display island well

manhattan - chilled display island well

• Flat bed chilled island well, which is perfect for the display of salads, drinks and fruit.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• The angle of the display deck can be adjusted for enhanced presentation.
• Double-sided sneeze guard that can be accessed from both sides.
• A wide version is also available, which increases the depth to 810mm.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled Island Well
MCIW3-GO 3/1 1175 x 660 x 560h 120 1.7
MCIW4-GO 4/1 1525 x 660 x 560h 133 1.7
MCIW5-GO 5/1 1875 x 660 x 560h 147 1.7
MCIW6-GO 6/1 2225 x 660 x 560h 160 2.2
Chilled Wide Island Well
MCWIW3-GO 3/1 1175 x 810 x 560h 140 1.7
MCWIW4-GO 4/1 1525 x 810 x 560h 160 1.9
MCWIW5-GO 5/1 1875 x 810 x 560h 180 1.9
MCWIW6-GO 6/1 2225 x 810 x 560h 200 2.2
Downloads: DWG

Downloads: DWG

MCIW3-GO

MCIW3-GO

MCIW4-GO

MCIW4-GO

MCIW5-GO

MCIW5-GO

MCIW6-GO

MCIW6-GO

MCWIW3-GO

MCWIW3-GO

MCWIW4-GO

MCWIW4-GO

MCWIW5-GO

MCWIW5-GO

MCWIW6-GO

MCWIW6-GO

Downloads: PDF

Downloads: PDF

MCIW3-GO

MCIW3-GO

MCIW4-GO

MCIW4-GO

MCIW5-GO

MCIW5-GO

MCIW6-GO

MCIW6-GO

MCWIW3-GO

MCWIW3-GO

MCWIW4-GO

MCWIW4-GO

MCWIW5-GO

MCWIW5-GO

MCWIW6-GO

MCWIW6-GO

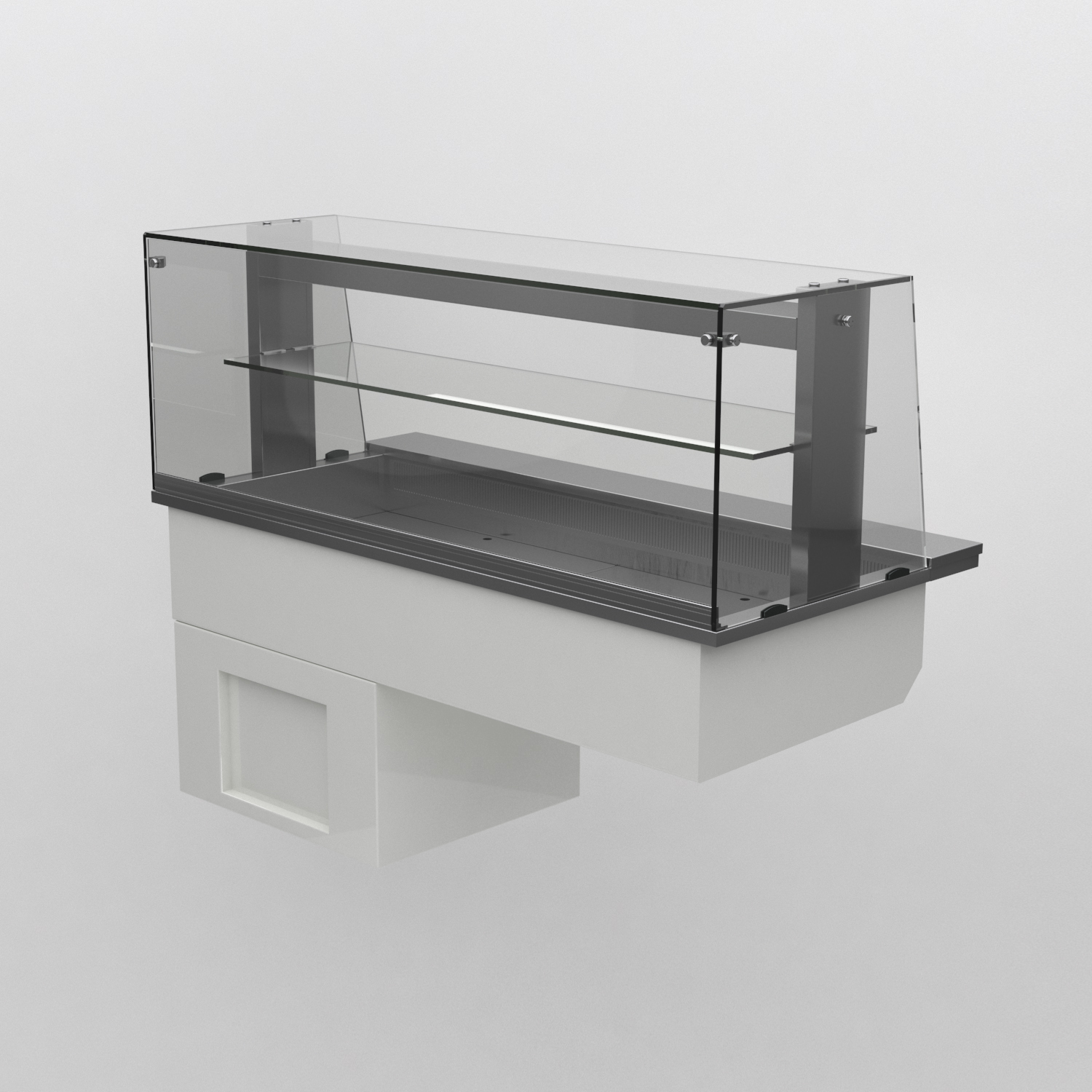

manhattan - chilled display deli

manhattan - chilled display deli

• Fully enclosed chilled display deli designed for assisted service only.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• Rear preparation shelf with optional chopping board.
• The angle of the display deck can be adjusted for enhanced presentation.
• The centre shelf is for the display of ambient produce.
• Gantry mounted controller installed on operators side (GO) as standard.
• New 2-tier version available on special request.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled Display Deli
MCDL2-GO 2/1 825 x 763 x 560h 105 1.4
MCDL3-GO 3/1 1175 x 763 x 560h 125 1.7
MCDL4-GO 4/1 1525 x 763 x 560h 153 1.9
MCDL5-GO 5/1 1875 x 763 x 560h 183 1.9
MCDL6-GO 6/1 2225 x 763 x 560h 197 2.2
Chilled Display Wide Deli
MCWDL2-GO 2/1 825 x 913 x 560h 105 1.4
MCWDL3-GO 3/1 1175 x 913 x 560h 126 1.7
MCWDL4-GO 4/1 1525 x 913 x 560h 158 1.9
Downloads: DWG

Downloads: DWG

MCDL2-GO

MCDL2-GO

MCDL3-GO

MCDL3-GO

MCDL4-GO

MCDL4-GO

MCDL5-GO

MCDL5-GO

MCDL6-GO

MCDL6-GO

MCWDL2-GO

MCWDL2-GO

MCWDL3-GO

MCWDL3-GO

MCWDL4-GO

MCWDL4-GO

Downloads: PDF

Downloads: PDF

MCDL2-GO

MCDL2-GO

MCDL3-GO

MCDL3-GO

MCDL4-GO

MCDL4-GO

MCDL5-GO

MCDL5-GO

MCDL6-GO

MCDL6-GO

MCWDL2-GO

MCWDL2-GO

MCWDL3-GO

MCWDL3-GO

MCWDL4-GO

MCWDL4-GO

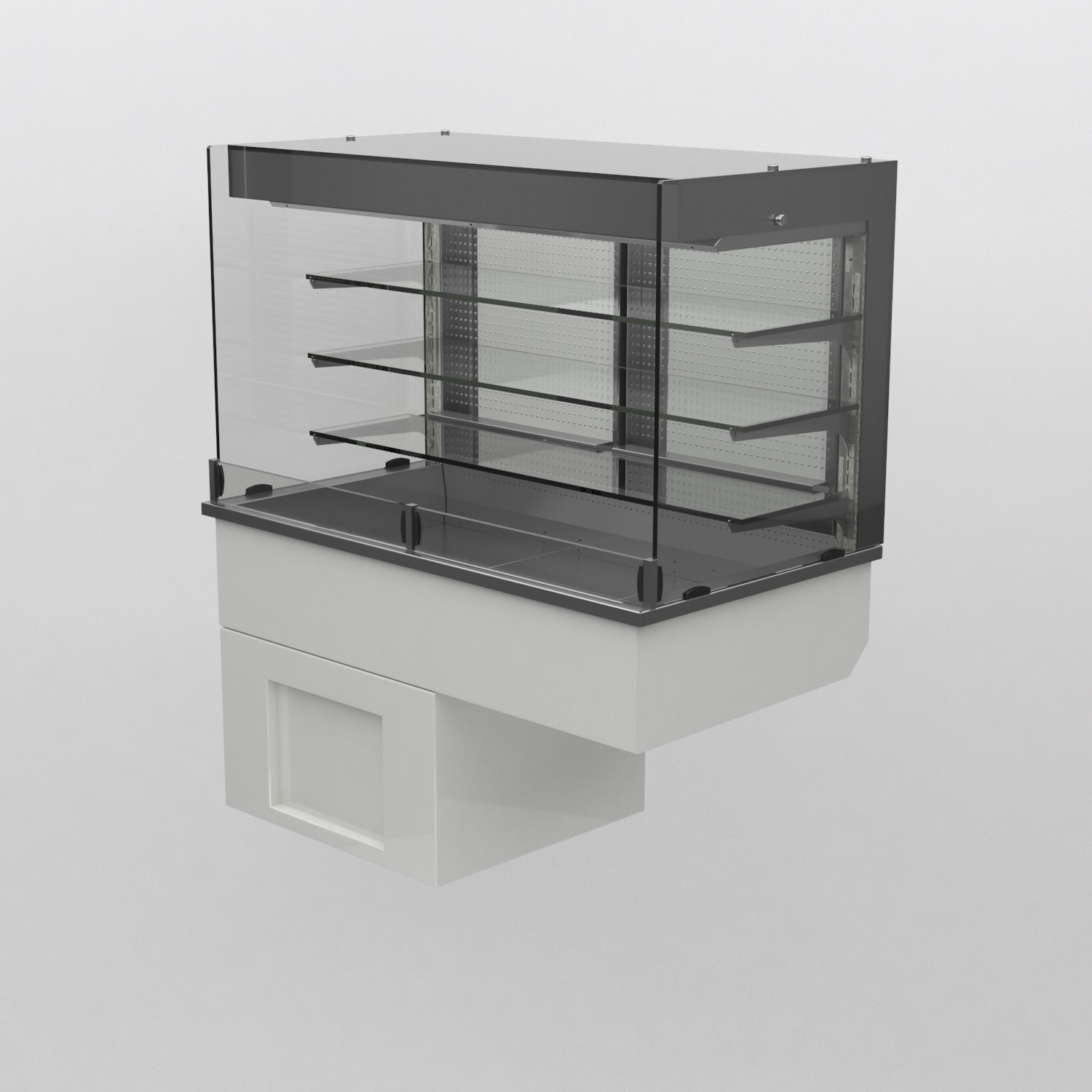

manhattan - chilled display multideck

manhattan - chilled display multideck

• Chilled display multidecks are designed for self help service.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature, perfect for fresh cakes or patissery
• Double-glazed, full height side hinged doors included as standard.
• The angle of the display deck can be adjusted for enhanced presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled 2 Tier Multideck With Doors
MC2ASMD2-GO 2/1 825 x 660 x 560h 110 2.4
MC2ASMD3-GO 3/1 1175 x 660 x 560h 144 2.5
MC2ASMD4-GO 4/1 1525 x 660 x 560h 180 2.7
MC2ASMD5-GO 5/1 1875 x 660 x 560h 206 2.7
Chilled 3 Tier Multideck With Doors
MC3ASMD2-GO 2/1 825 x 660 x 693h 144 2.4
MC3ASMD3-GO 3/1 1175 x 660 x 693h 161 2.5
MC3ASMD4-GO 4/1 1525 x 660 x 693h 204 2.7
MC3ASMD5-GO 5/1 1875 x 660 x 693h 248 2.7
Chilled 4 Tier Multideck With Doors
MC4ASMD2-GO 2/1 825 x 660 x 693h 155 2.4
MC4ASMD3-GO 3/1 1175 x 660 x 853h 176 2.5
MC4ASMD4-GO 4/1 1525 x 660 x 853h 219 2.7
Downloads: DWG

Downloads: DWG

MC2ASMD2-GO

MC2ASMD2-GO

MC2ASMD3-GO

MC2ASMD3-GO

MC2ASMD4-GO

MC2ASMD4-GO

MC2ASMD5-GO

MC2ASMD5-GO

MC3ASMD2-GO

MC3ASMD2-GO

MC3ASMD3-GO

MC3ASMD3-GO

MC3ASMD4-GO

MC3ASMD4-GO

MC3ASMD5-GO

MC3ASMD5-GO

MC4ASMD2-GO

MC4ASMD2-GO

MC4ASMD3-GO

MC4ASMD3-GO

MC4ASMD4-GO

MC4ASMD4-GO

Downloads: PDF

Downloads: PDF

MC2ASMD2-GO

MC2ASMD2-GO

MC2ASMD3-GO

MC2ASMD3-GO

MC2ASMD4-GO

MC2ASMD4-GO

MC2ASMD5-GO

MC2ASMD5-GO

MC3ASMD2-GO

MC3ASMD2-GO

MC3ASMD3-GO

MC3ASMD3-GO

MC3ASMD4-GO

MC3ASMD4-GO

MC3ASMD5-GO

MC3ASMD5-GO

MC4ASMD2-GO

MC4ASMD2-GO

MC4ASMD3-GO

MC4ASMD3-GO

MC4ASMD4-GO

MC4ASMD4-GO
