Chilled integrale Units

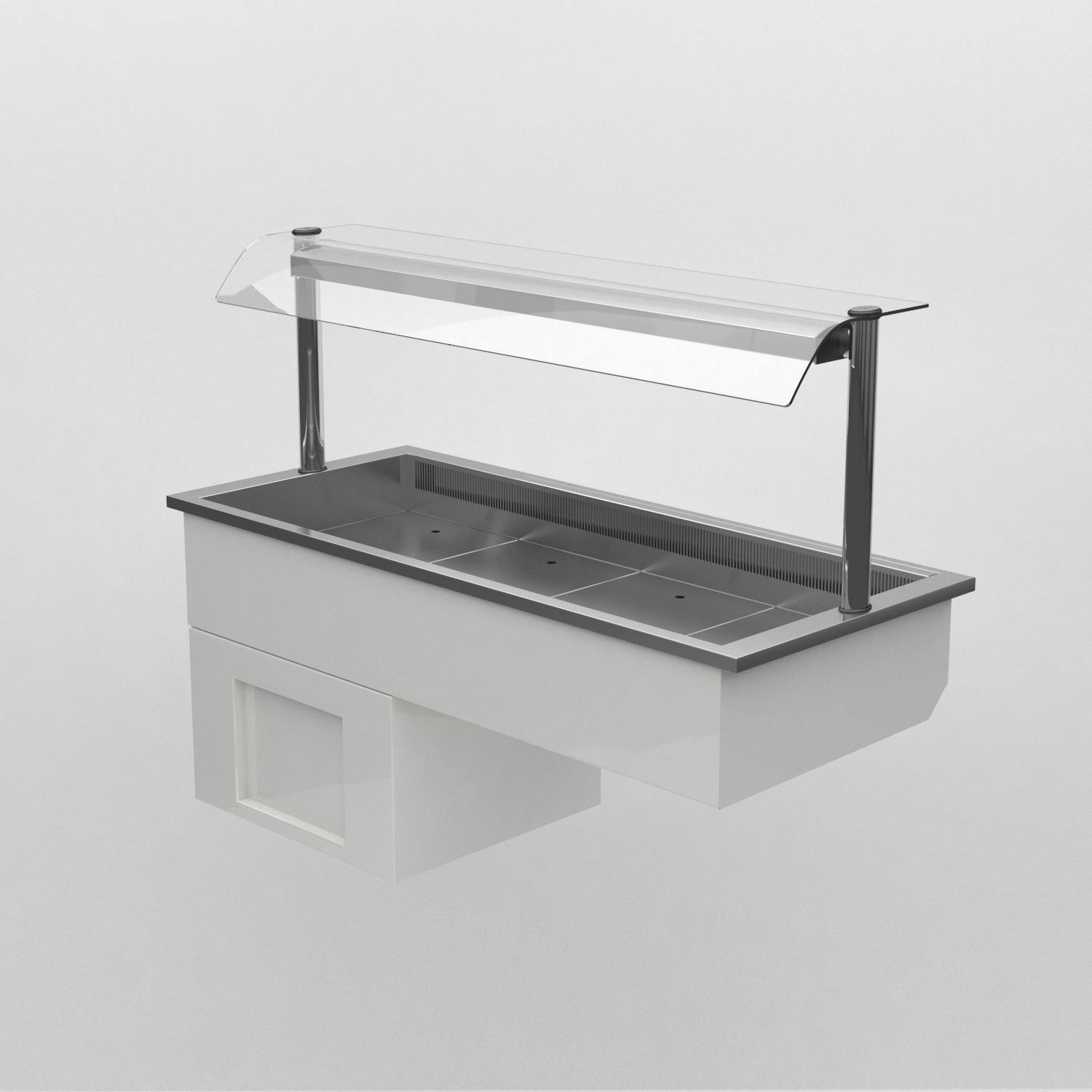

integrale - chilled display well

integrale - chilled display well

• Flat bed, chilled deli display, which is perfect for salads, drinks and fruit.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• The angle of the display deck can be adjusted for enhanced presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
ICW2-GO 2/1 825 x 660 x 535h 91 1.4
ICW3-GO 3/1 1175 x 660 x 535h 108 1.7
ICW4-GO 4/1 1525 x 660 x 535h 128 1.9
ICW5-GO 5/1 1875 x 660 x 535h 141 1.9
ICW6-GO 6/1 2330 x 660 x 535h 158 2.2
Downloads: DWG

Downloads: DWG

ICW2-GO

ICW2-GO

ICW3-GO

ICW3-GO

ICW4-GO

ICW4-GO

ICW5-GO

ICW5-GO

ICW6-GO

ICW6-GO

Downloads: PDF

Downloads: PDF

ICW2-GO

ICW2-GO

ICW3-GO

ICW3-GO

ICW4-GO

ICW4-GO

ICW5-GO

ICW5-GO

ICW6-GO

ICW6-GO

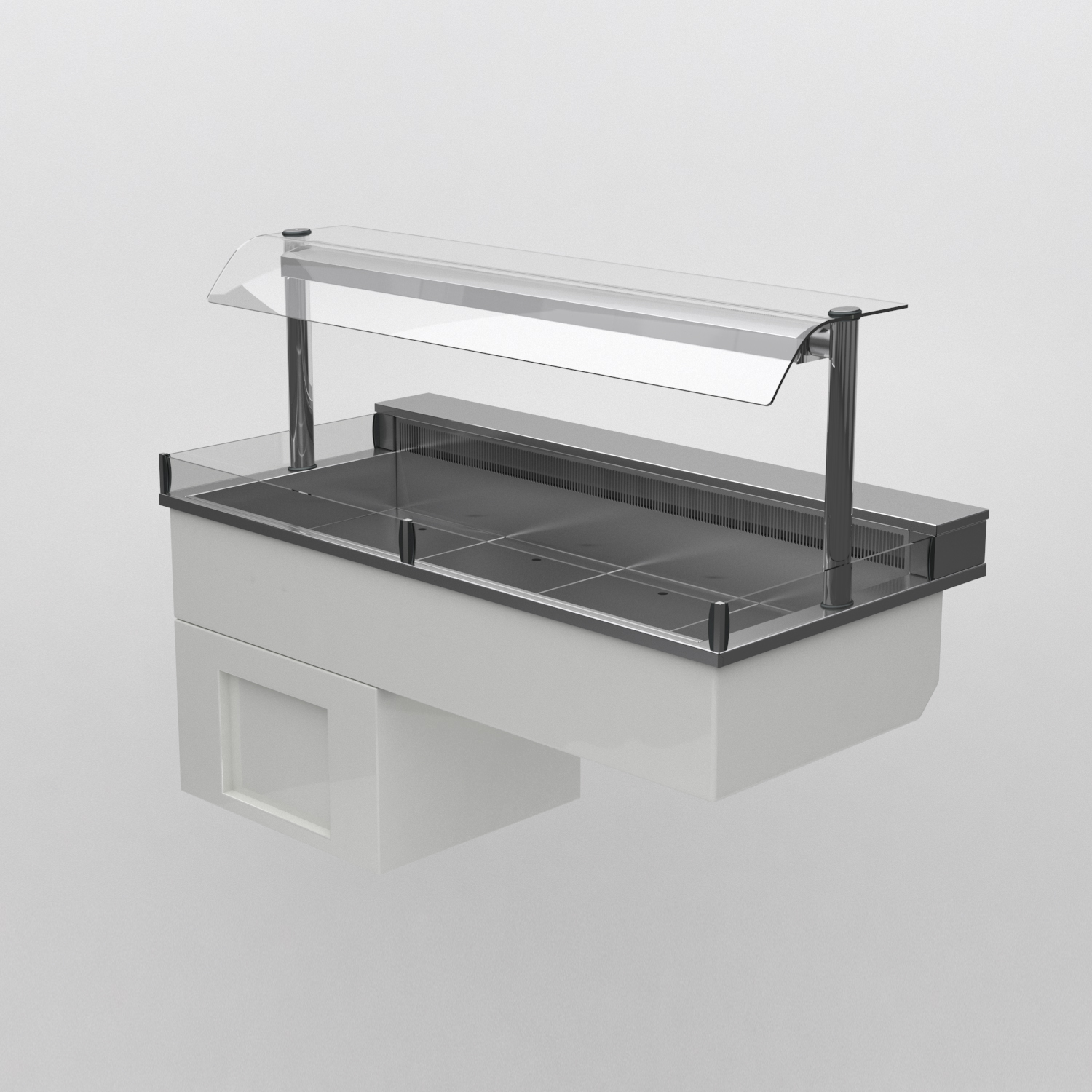

integrale - chilled display deck

integrale - chilled display deck

• Flat bed chilled deck, which is perfect for the display of salads, drinks and fruit.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• The angle of the display deck can be adjusted for enhanced presentation.
• Raised rear preparation shelf and glass riser to retain chilled air.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
ICDK2-GO 2/1 825 x 764 x 535h 124 1.4
ICDK3-GO 3/1 1175 x 764 x 535h 142 1.7
ICDK4-GO 4/1 1525 x 764 x 535h 168 1.9
ICDK5-GO 5/1 1875 x 764 x 535h 181 1.9
ICDK6-GO 6/1 2330 x 764 x 535h 198 2.2
Downloads: DWG

Downloads: DWG

ICDK2-GO

ICDK2-GO

ICDK3-GO

ICDK3-GO

ICDK4-GO

ICDK4-GO

ICDK5-GO

ICDK5-GO

ICDK6-GO

ICDK6-GO

Downloads: PDF

Downloads: PDF

ICDK2-GO

ICDK2-GO

ICDK3-GO

ICDK3-GO

ICDK4-GO

ICDK4-GO

ICDK5-GO

ICDK5-GO

ICDK6-GO

ICDK6-GO

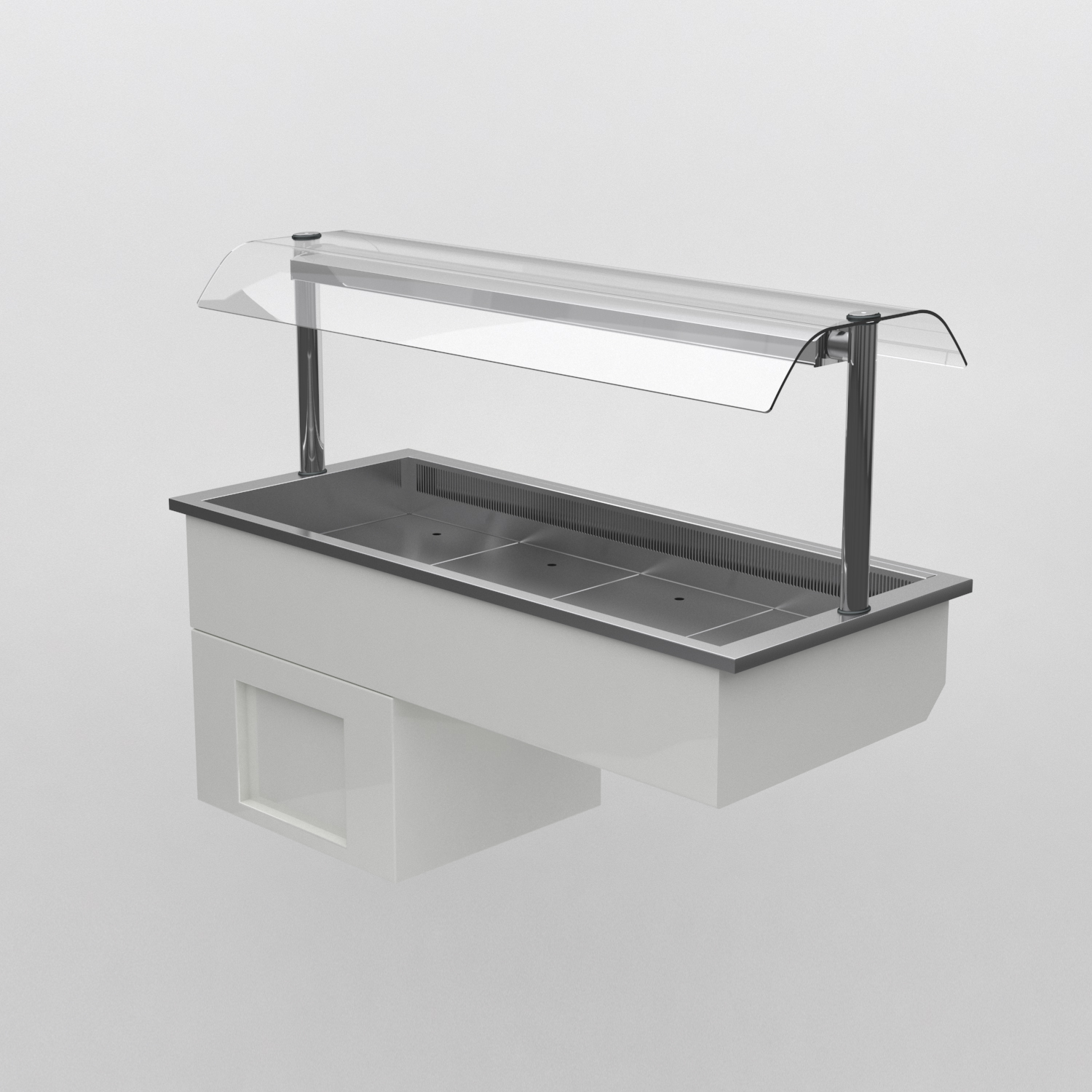

integrale - chilled display island well

integrale - chilled display island well

• Flat bed chilled island well, which is perfect for the display of salads, drinks and fruit.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
•The angle of the display deck can be adjusted for enhanced presentation.
• Double-sided sneeze guard that can be accessed from both sides.
• A wide version is also available, which increases the depth to 810mm.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled Island Well
ICIW3-GO 3/1 1175 x 660 x 535h 118 1.7
ICIW4-GO 4/1 1525 x 660 x 535h 145 1.9
ICIW6-GO 6/1 2330 x 660 x 535h 165 2.2
Chilled Wide Island Well
ICWIW3-GO 3/1 1175 x 810 x 535h 140 1.7
ICWIW4-GO 4/1 1525 x 810 x 535h 160 1.9
ICWIW6-GO 6/1 2330 x 810 x 535h 170 2.2
Downloads: DWG

Downloads: DWG

ICIW3-GO

ICIW3-GO

ICIW4-GO

ICIW4-GO

ICIW6-GO

ICIW6-GO

ICWIW3-GO

ICWIW3-GO

ICWIW4-GO

ICWIW4-GO

ICWIW6-GO

ICWIW6-GO

Downloads: PDF

Downloads: PDF

ICIW3-GO

ICIW3-GO

ICIW4-GO

ICIW4-GO

ICIW6-GO

ICIW6-GO

ICWIW3-GO

ICWIW3-GO

ICWIW4-GO

ICWIW4-GO

ICWIW6-GO

ICWIW6-GO

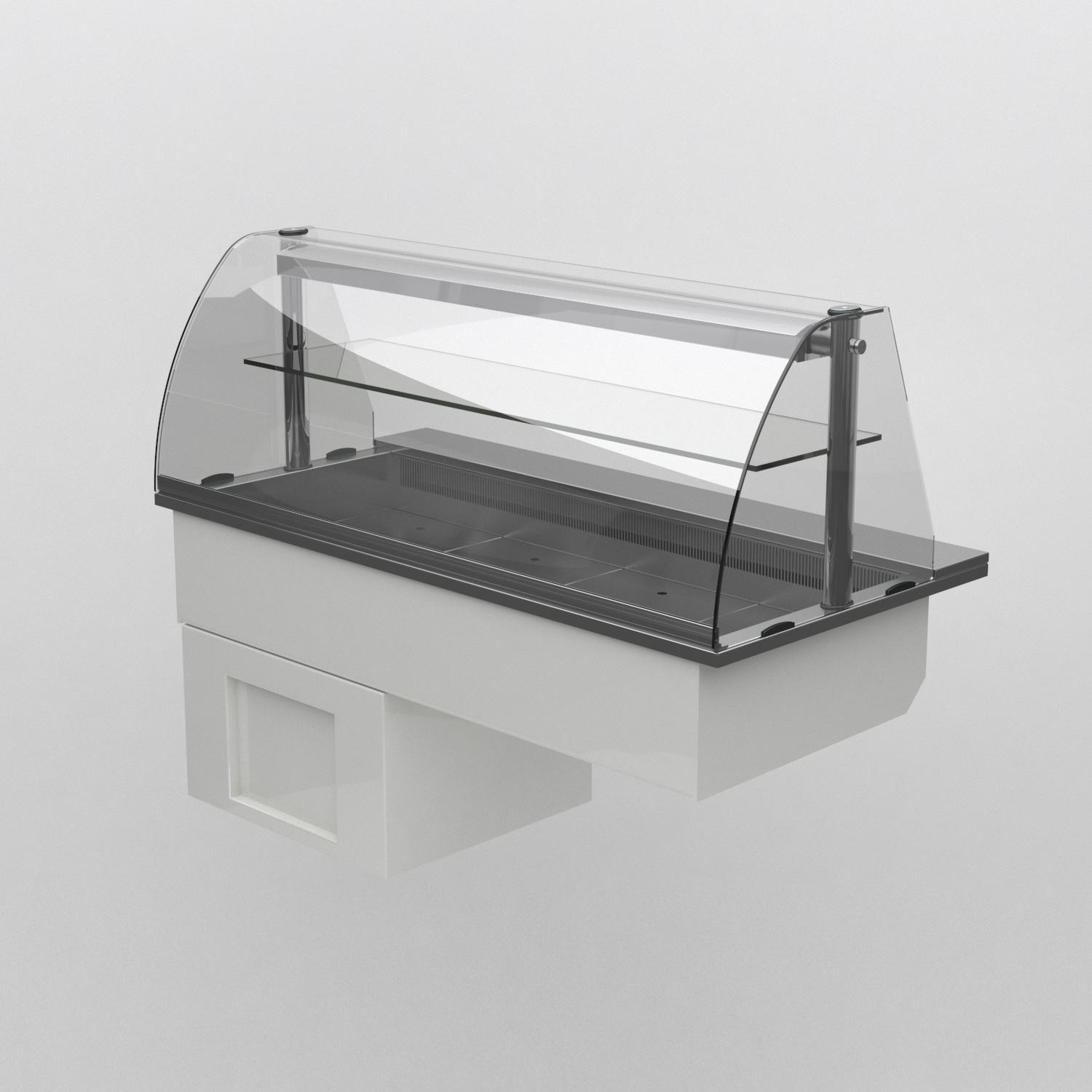

integrale - chilled display deli

integrale - chilled display deli

• Fully enclosed chilled display deli designed for assisted service only.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature, perfect for fresh cakes or patisserie.
• Rear preparation shelf with optional chopping board.
• The angle of the display deck can be adjusted for enhanced presentation.
• The centre shelf is for the display of ambient produce.
• Gantry mounted controller installed on operators side (GO) as standard.
• New 2-tier version available on special request.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled Deli
ICDL2-GO 2/1 825 x 763 x 535h 105 1.4
ICDL3-GO 3/1 1175 x 763 x 535h 125 1.7
ICDL4-GO 4/1 1525 x 763 x 535h 153 1.9
ICDL5-GO 5/1 1875 x 763 x 535h 183 1.9
ICDL6-GO 6/1 2330 x 763 x 535h 197 2.2
Chilled Wide Deli
ICWDL2-GO 2/1 825 x 913 x 535h 105 1.4
ICWDL3-GO 3/1 1175 x 913 x 535h 126 1.7
ICWDL4-GO 4/1 1525 x 913 x 535h 158 1.9
ICWDL5-GO 5/1 1875 x 913 x 535h 190 1.9
Downloads: DWG

Downloads: DWG

ICDL2-GO

ICDL2-GO

ICDL3-GO

ICDL3-GO

ICDL4-GO

ICDL4-GO

ICDL5-GO

ICDL5-GO

ICDL6-GO

ICDL6-GO

ICWDL2-GO

ICWDL2-GO

ICWDL3-GO

ICWDL3-GO

ICWDL4-GO

ICWDL4-GO

ICWDL5-GO

ICWDL5-GO

Downloads: PDF

Downloads: PDF

ICDL2-GO

ICDL2-GO

ICDL3-GO

ICDL3-GO

ICDL4-GO

ICDL4-GO

ICDL5-GO

ICDL5-GO

ICDL6-GO

ICDL6-GO

ICWDL2-GO

ICWDL2-GO

ICWDL3-GO

ICWDL3-GO

ICWDL4-GO

ICWDL4-GO

ICWDL5-GO

ICWDL5-GO

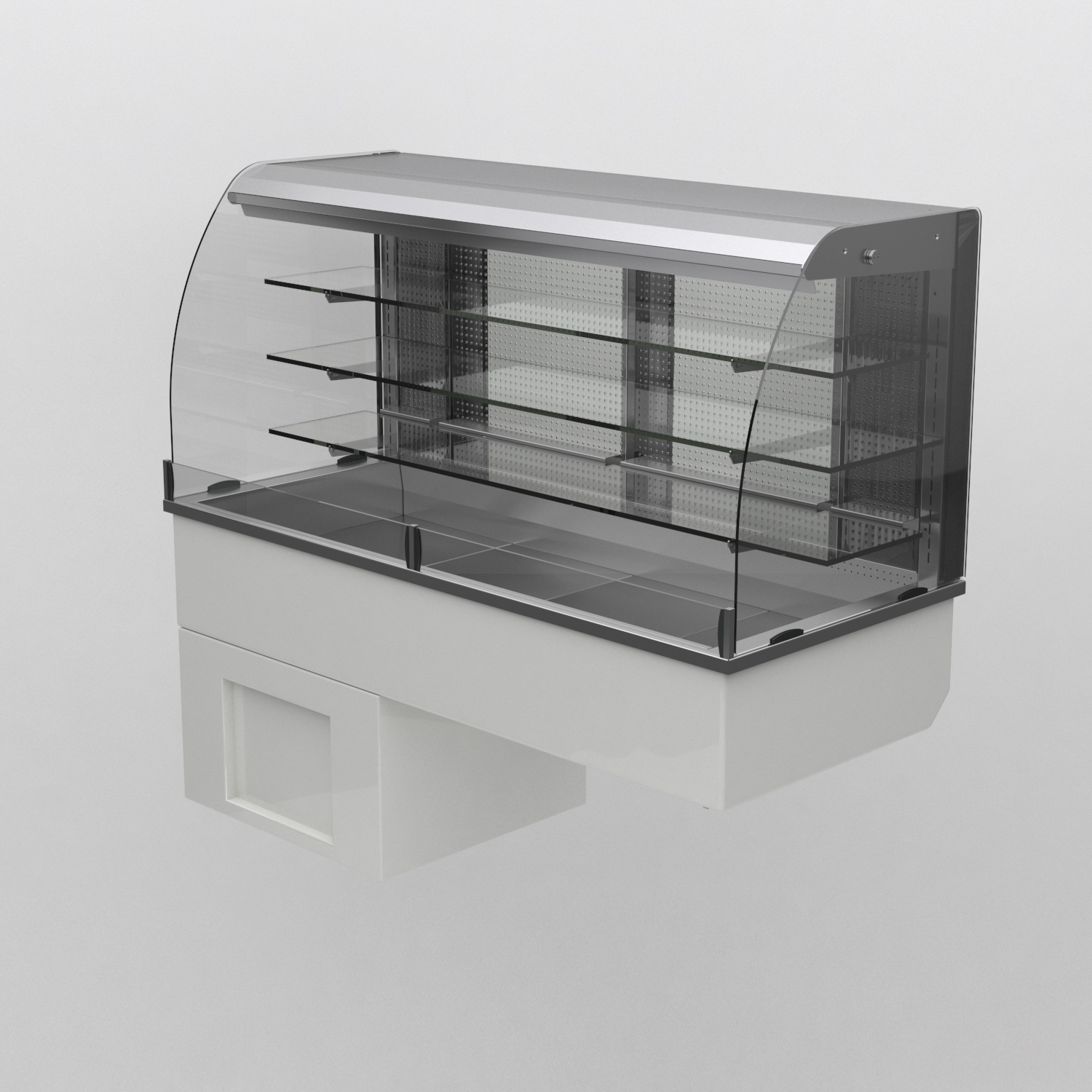

integrale - chilled display multideck

integrale - chilled display multideck

• Chilled display multidecks are designed for self help service.
• Gentle flow of convected air maintains pre-chilled food at a safe regulated temperature.
• Double-glazed, full height side hinged doors included as standard.
• The angle of the display deck can be adjusted for enhanced presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Chilled 2 Tier Multideck With Doors
IC2ASMD2-GO 2/1 825 x 660 x 533h 110 2.4
IC2ASMD3-GO 3/1 1175 x 660 x 533h 144 2.5
IC2ASMD4-GO 4/1 1525 x 660 x 533h 180 2.7
Chilled 3 Tier Multideck With Doors
IC3ASMD2-GO 2/1 825 x 660 x 693h 144 2.4
IC3ASMD3-GO 3/1 1175 x 660 x 693h 161 2.5
IC3ASMD4-GO 4/1 1525 x 660 x 693h 204 2.7
IC3ASMD5-GO 5/1 1875 x 660 x 693h 238 2.7
Chilled 4 Tier Multideck With Doors
IC4ASMD2-GO 2/1 825 x 660 x 853h 155 2.4
IC4ASMD3-GO 3/1 1175 x 660 x 853h 176 2.5
IC4ASMD4-GO 4/1 1525 x 660 x 853h 219 2.7
Downloads: DWG

Downloads: DWG

IC2ASMD2-GO

IC2ASMD2-GO

IC2ASMD3-GO

IC2ASMD3-GO

IC2ASMD4-GO

IC2ASMD4-GO

IC3ASDM2-GO

IC3ASDM2-GO

IC3ASDM3-GO

IC3ASDM3-GO

IC3ASDM4-GO

IC3ASDM4-GO

IC3ASDM5-GO

IC3ASDM5-GO

IC4ASDM2-GO

IC4ASDM2-GO

IC4ASDM3-GO

IC4ASDM3-GO

IC4ASDM4-GO

IC4ASDM4-GO

Downloads: PDF

Downloads: PDF

IC2ASMD2-GO

IC2ASMD2-GO

IC2ASMD3-GO

IC2ASMD3-GO

IC2ASMD4-GO

IC2ASMD4-GO

IC3ASDM2-GO

IC3ASDM2-GO

IC3ASDM3-GO

IC3ASDM3-GO

IC3ASDM4-GO

IC3ASDM4-GO

IC3ASDM5-GO

IC3ASDM5-GO

IC4ASDM2-GO

IC4ASDM2-GO

IC4ASDM3-GO

IC4ASDM3-GO

IC4ASDM4-GO

IC4ASDM4-GO
