Options & Technical Specifications

Optional extras
All Displays
Export packing case.

We strongly recommend the purchase of export packing cases for goods exported outside of mainland UK.

Gantry controllers are installed operator side (GO) as standard, but can be installed customer side (GC) on request- Not available for enclosed displays.

Chilled Displays
Rear Doors
Glass Display Shelf • Undershelf Lights
Stainless Steel Display Shelf • Undershelf Lights
Stainless Steel Wire Point of Sale Impulse Baskets
Heated Displays
Rear Doors
Refrigerant
All chilled units come with R404A as standard refrigerant with R290 available upon request
Standard technical specifications
All Displays
General construction from 304 and 430 grade polished stainless steel.
All glass 6mm toughened.
Full internal fuse protection.
Heated Displays
Product temperature maintained at 65 – 72°C in 20°C ambient.
Chilled Displays
Chilled by recirculated cold air using fan blown evaporator.
Integral condensing unit and automatic condensate evaporator.
Resettable high pressure safety switch.
Digital electronic temperature control.
Display temperature 3-5°C in 25°C ambient at 50% relative humidity.
Power Supplies
All units are supplied with a 3.5m lead as standard, suitable for use with a 220/240volt supply.
We strongly recommend that the supply is protected by a suitably rated residual current protection device.
Wattage
icapacity (chilled) display units range from 2.2 kw to 3.0 kw.
icapacity (heated) display units range from 2.5 kw to 4.0 kw.

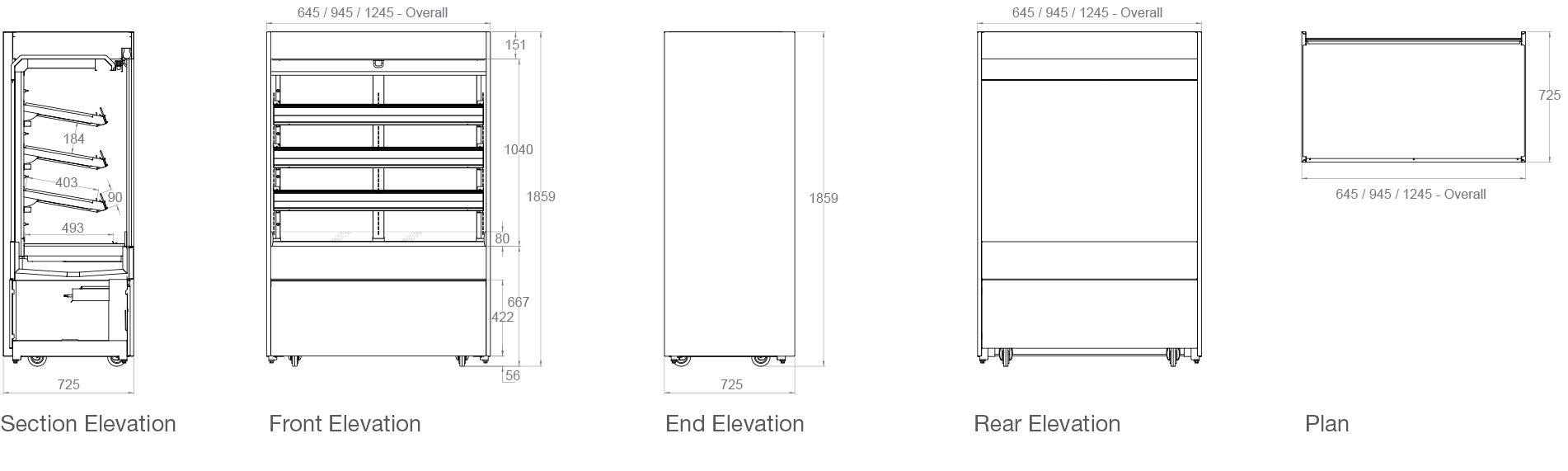

icapacity – Standard Heated

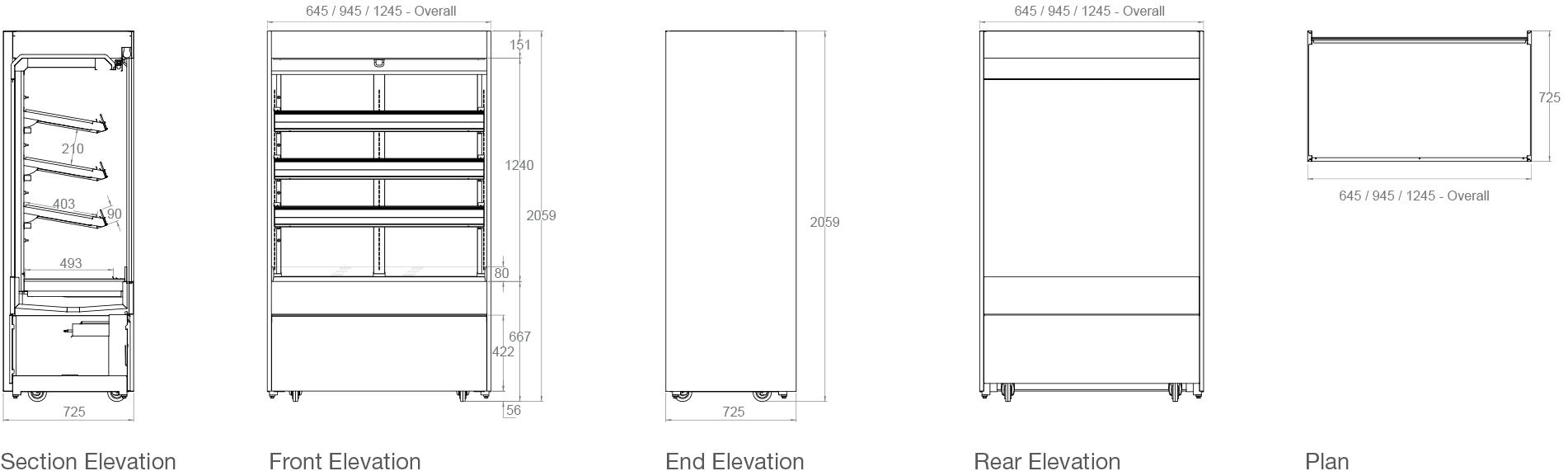

icapacity – Standard Tall Heated

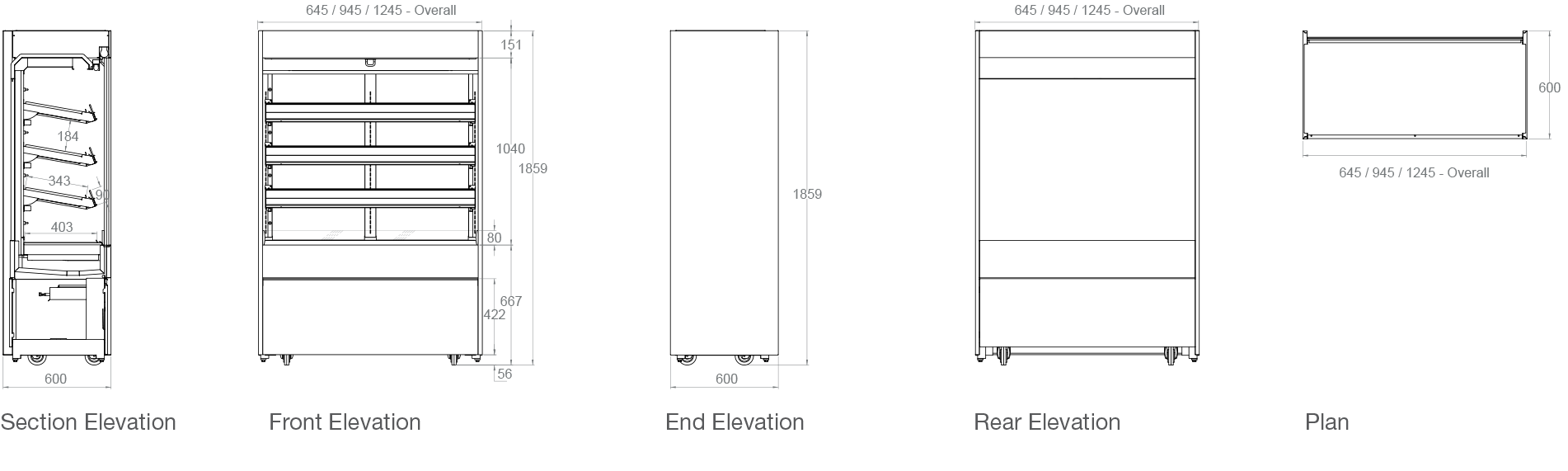

icapacity – Narrow Heated
icapacity – Narrow Tall Heated

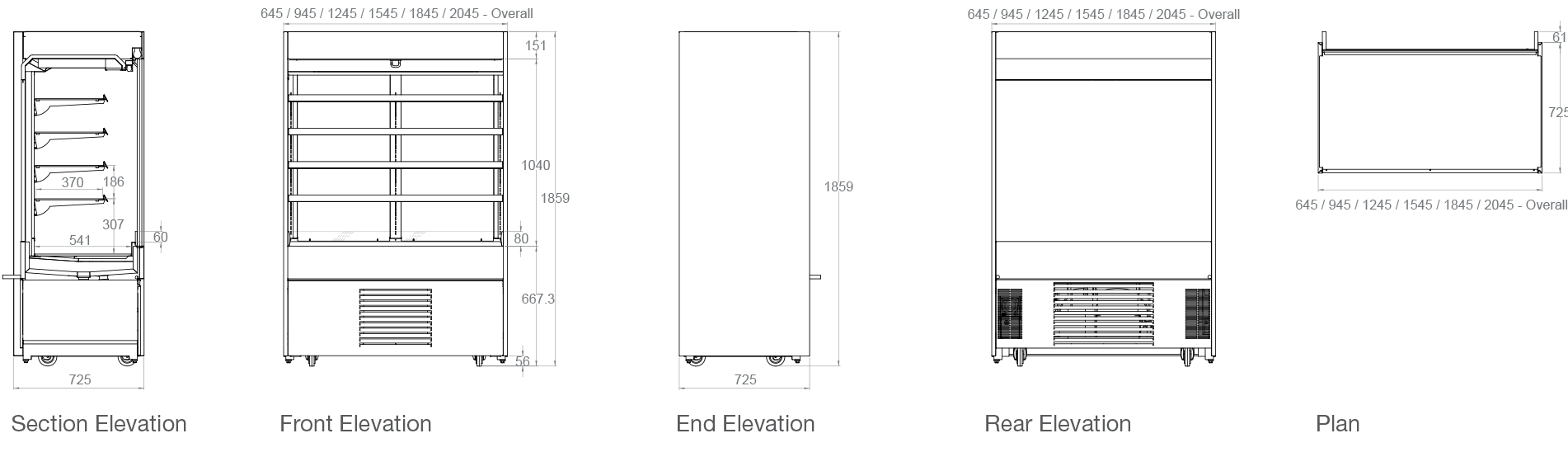

icapacity – Standard Chilled

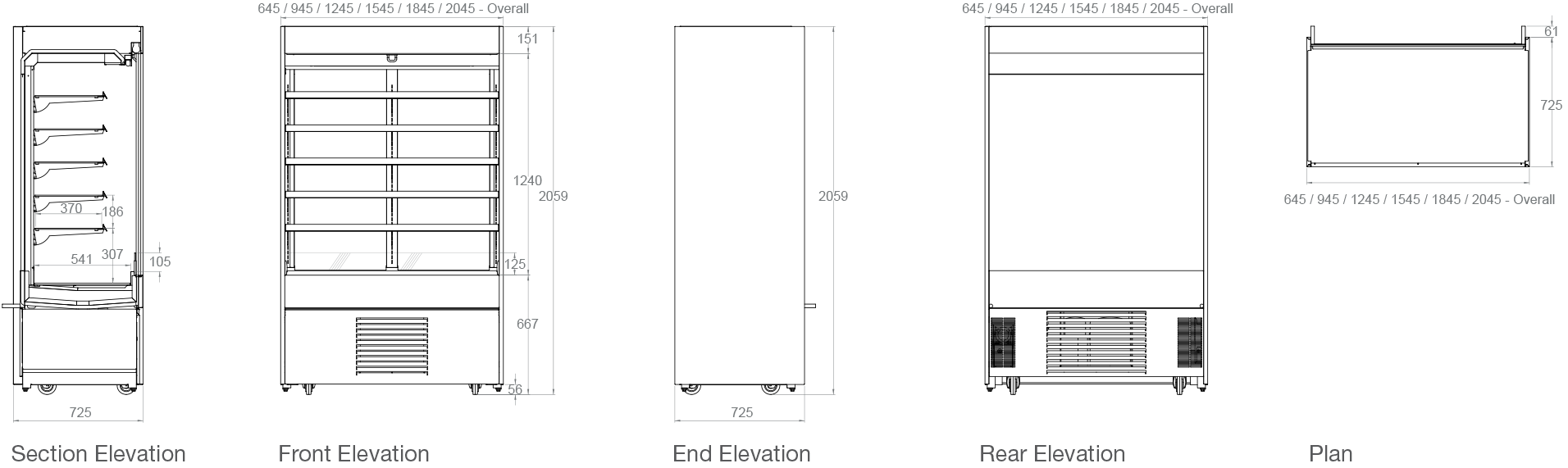

icapacity – Standard Tall Chilled

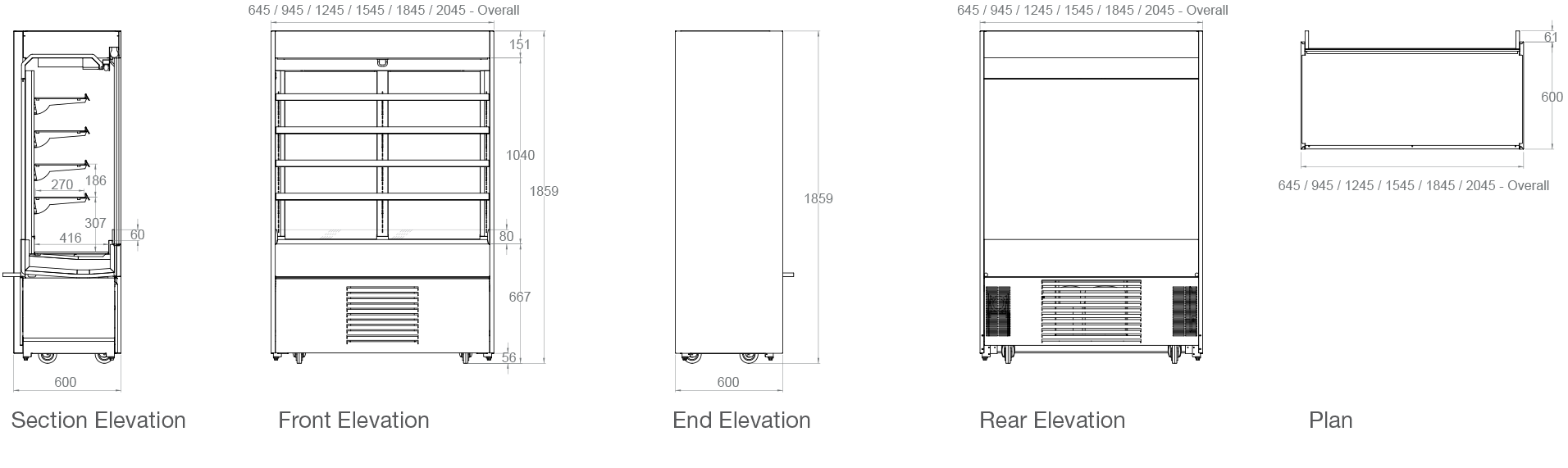

icapacity – Narrow Chilled
icapacity – Narrow Tall Chilled
