Heated imobile Units

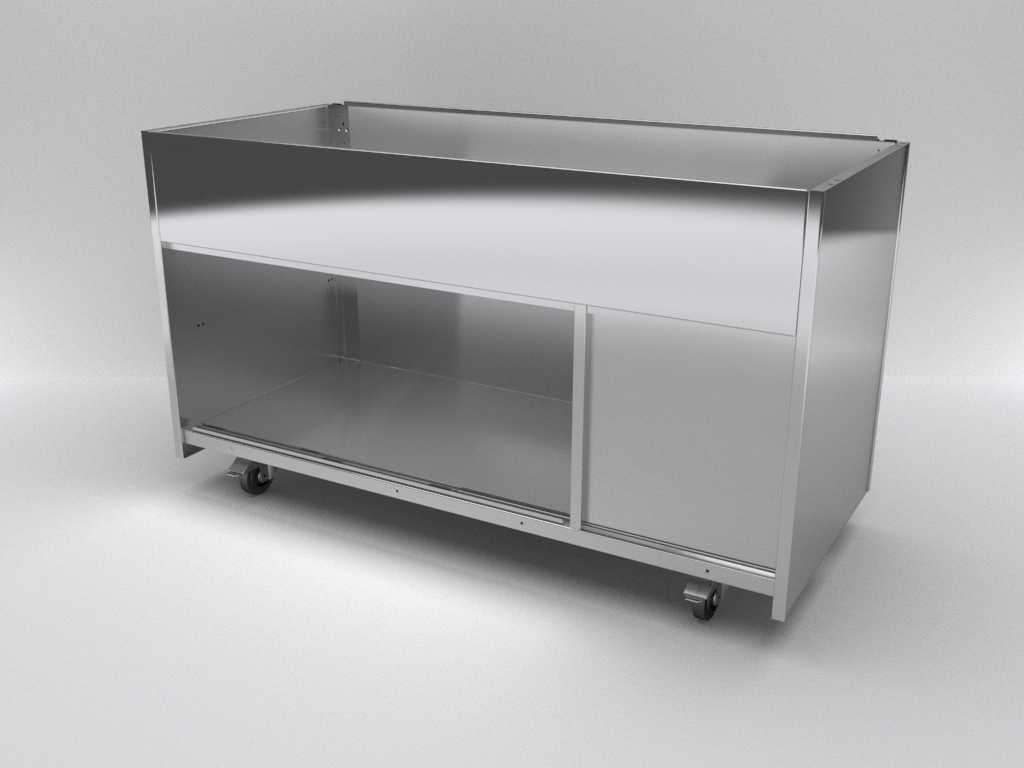

ambient void: heated drop in

ambient void: heated drop in

• Accepts all integrale, da vinci and manhattan standard width displays.
• Hot cupboard maintains pre-heated cooked food at a regulated temperature.
• All units mounted on four 100mm diameter castors, two lockable.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Standard Base Unit
DC-H2 2/1 825(w) x 660(d) x 900(h) 43 N/A
DC-H3 3/1 1175(w) x 660(d) x 900(h) 53 N/A
DC-H4 4/1 1525(w) x 660(d) x 900(h) 66 N/A
DC-H5 5/1 1875(w) x 660(d) x 900(h) 75 N/A
Wide Base Unit
DC-HW2 2/1 825(w) x 810(d) x 900(h) 53 N/A
DC-HW3 3/1 1175(w) x 810(d) x 900(h) 65 N/A
DC-HW4 4/1 1525(w) x 810(d) x 900(h) 81 N/A
DC-HW5 5/1 1875 (w) x 810(d) x 900(h) 92 N/A
Downloads: DWG

Downloads: DWG

DC-H2

DC-H2

DC-H3

DC-H3

DC-H4

DC-H4

DC-H5

DC-H5

DC-HW2

DC-HW2

DC-HW3

DC-HW3

DC-HW4

DC-HW4

DC-HW5

DC-HW5

Downloads: PDF

Downloads: PDF

DC-H2

DC-H2

DC-H3

DC-H3

DC-H4

DC-H4

DC-H5

DC-H5

DC-HW2

DC-HW2

DC-HW3

DC-HW3

DC-HW4

DC-HW4

DC-HW5

DC-HW5

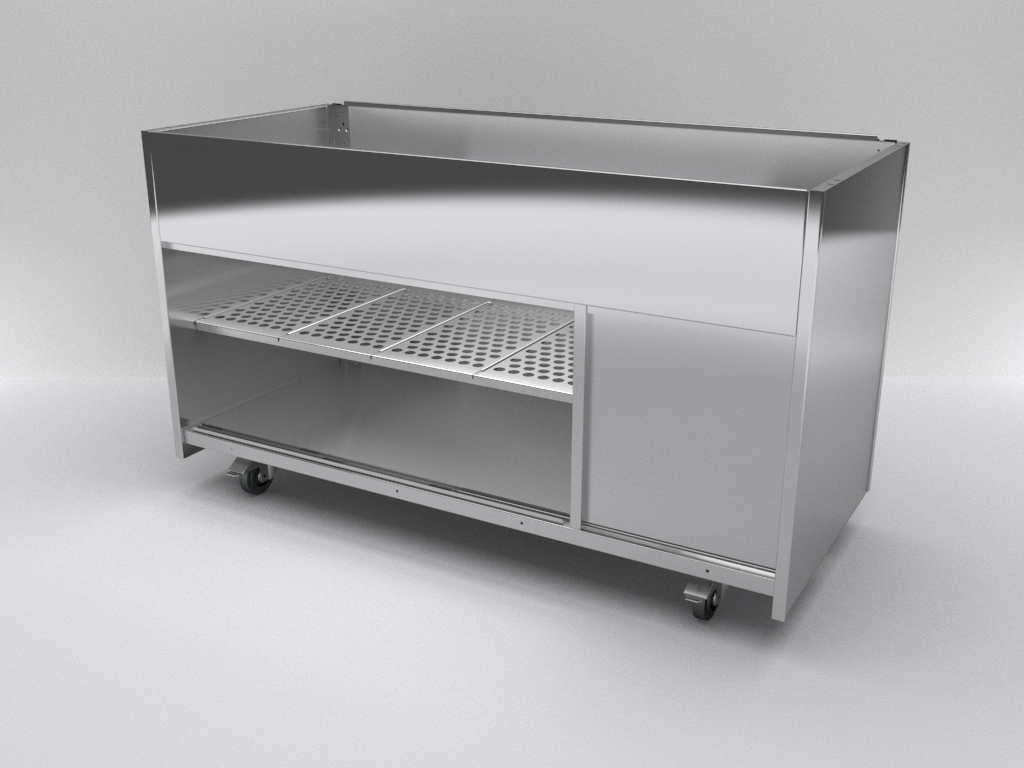

ambient void & shelf: heated drop-in

ambient void & shelf: heated drop-in

• Accepts all integrale, da vinci and manhattan standard width displays.
• Hot cupboard maintains pre-heated cooked food at a regulated temperature.
• All units mounted on four 100mm diameter castors, two lockable.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Standard Base Unit
DC-HS2 2/1 825(w) x 660(d) x 900(h) 47 N/A
DC-HS3 3/1 1175(w) x 660(d) x 900(h) 58 N/A
DC-HS4 4/1 1525(w) x 660(d) x 900(h) 72 N/A
DC-HS5 5/1 1875(w) x 660(d) x 900(h) 82 N/A
Wide Base Unit
DC-HSW2 2/1 825(w) x 810(d) x 900(h) 58 N/A
DC-HSW3 3/1 1175(w) x 810(d) x 900(h) 71 N/A
DC-HSW4 4/1 1525(w) x 810(d) x 900(h) 89 N/A
DC-HSW5 5/1 1875 (w)x 810(d) x 900(h) 101 N/A
Downloads: DWG

Downloads: DWG

DC-HS2

DC-HS2

DC-HS3

DC-HS3

DC-HS4

DC-HS4

DC-HS5

DC-HS5

DC-HSW2

DC-HSW2

DC-HSW3

DC-HSW3

DC-HSW4

DC-HSW4

DC-HSW5

DC-HSW5

Downloads: PDF

Downloads: PDF

DC-HS2

DC-HS2

DC-HS3

DC-HS3

DC-HS4

DC-HS4

DC-HS5

DC-HS5

DC-HSW2

DC-HSW2

DC-HSW3

DC-HSW3

DC-HSW4

DC-HSW4

DC-HSW5

DC-HSW5

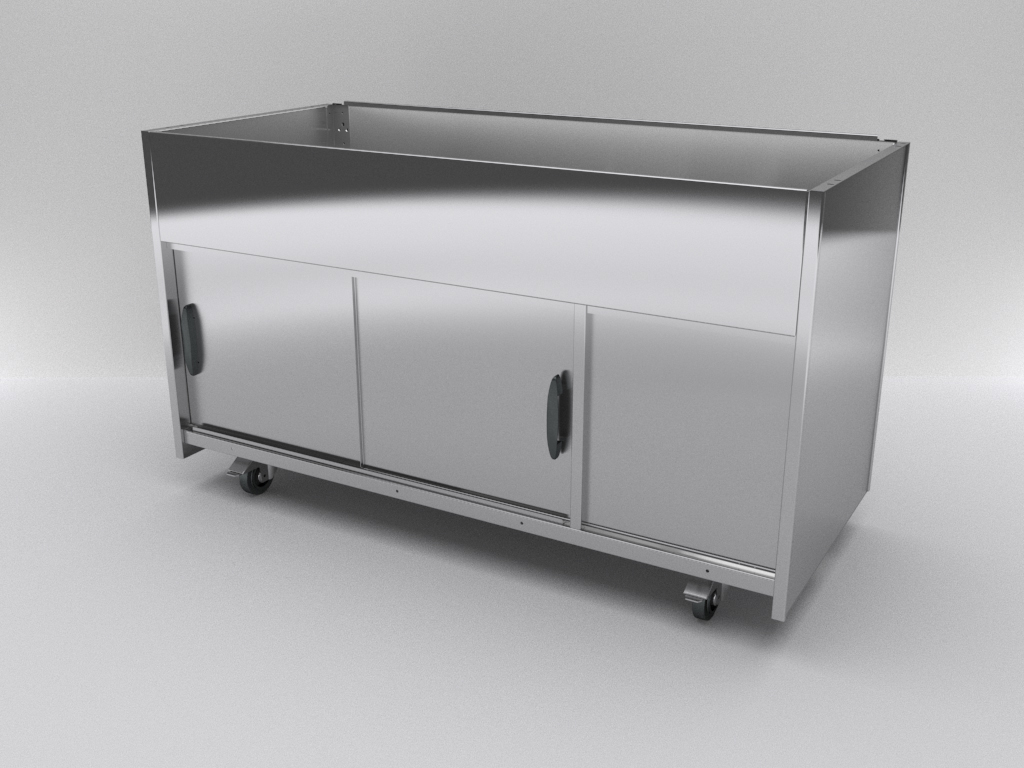

ambient cupboard: heated drop-in

ambient cupboard: heated drop-in

• Accepts all integrale, da vinci and manhattan standard width displays.
• Hot cupboard maintains pre-heated cooked food at a regulated temperature.
• All units mounted on four 100mm diameter castors, two lockable.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Standard Base Unit
DC-HD4 4/1 1525(w) x 660(d) x 900(h) 76 N/A
DC-HD5 5/1 1875(w) x 660(d) x 900(h) 86 N/A
Wide Base Unit
DC-HDW4 4/1 1525(w) x 810(d) x 900(h) 94 N/A
DC-HDW5 5/1 1875 (w)x 810(d) x 900(h) 106 N/A
Downloads: DWG

Downloads: DWG

DC-HD4

DC-HD4

DC-HD5

DC-HD5

DC-HDW4

DC-HDW4

DC-HDW5

DC-HDW5

Downloads: PDF

Downloads: PDF

DC-HD4

DC-HD4

DC-HD5

DC-HD5

DC-HDW4

DC-HDW4

DC-HDW5

DC-HDW5

hot cupboard: heated drop-in

hot cupboard: heated drop-in

• Accepts all integrale, da vinci and manhattan standard width displays.
• Hot cupboard maintains pre-heated cooked food at a regulated temperature.
• All units mounted on four 100mm diameter castors, two lockable.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Standard Base Unit
DC-HC3 3/1 1175(w) x 660(d) x 900(h) 65 0.5
DC-HC4 4/1 1525(w) x 660(d) x 900(h) 84 0.75
DC-HC5 5/1 1875(w) x 660(d) x 900(h) 95 1.0
Wide Base Unit
DC-HDW3 3/1 1175(w) x 660(d) x 900(h) 80 0.5
DC-HDW4 4/1 1525(w) x 810(d) x 900(h) 103 0.75
DC-HDW5 5/1 1875 (w)x 810(d) x 900(h) 117 1.0
Downloads: DWG

Downloads: DWG

DC-HC4

DC-HC4

DC-HC3

DC-HC3

DC-HC5

DC-HC5

DC-HDW4

DC-HDW4

DC-HDW3

DC-HDW3

DC-HDW5

DC-HDW5

Downloads: PDF

Downloads: PDF

DC-HD4

DC-HD4

DC-HC3

DC-HC3

DC-HD5

DC-HD5

DC-HDW4

DC-HDW4

DC-HDW3

DC-HDW3

DC-HDW5

DC-HDW5
