Heated integrale Units

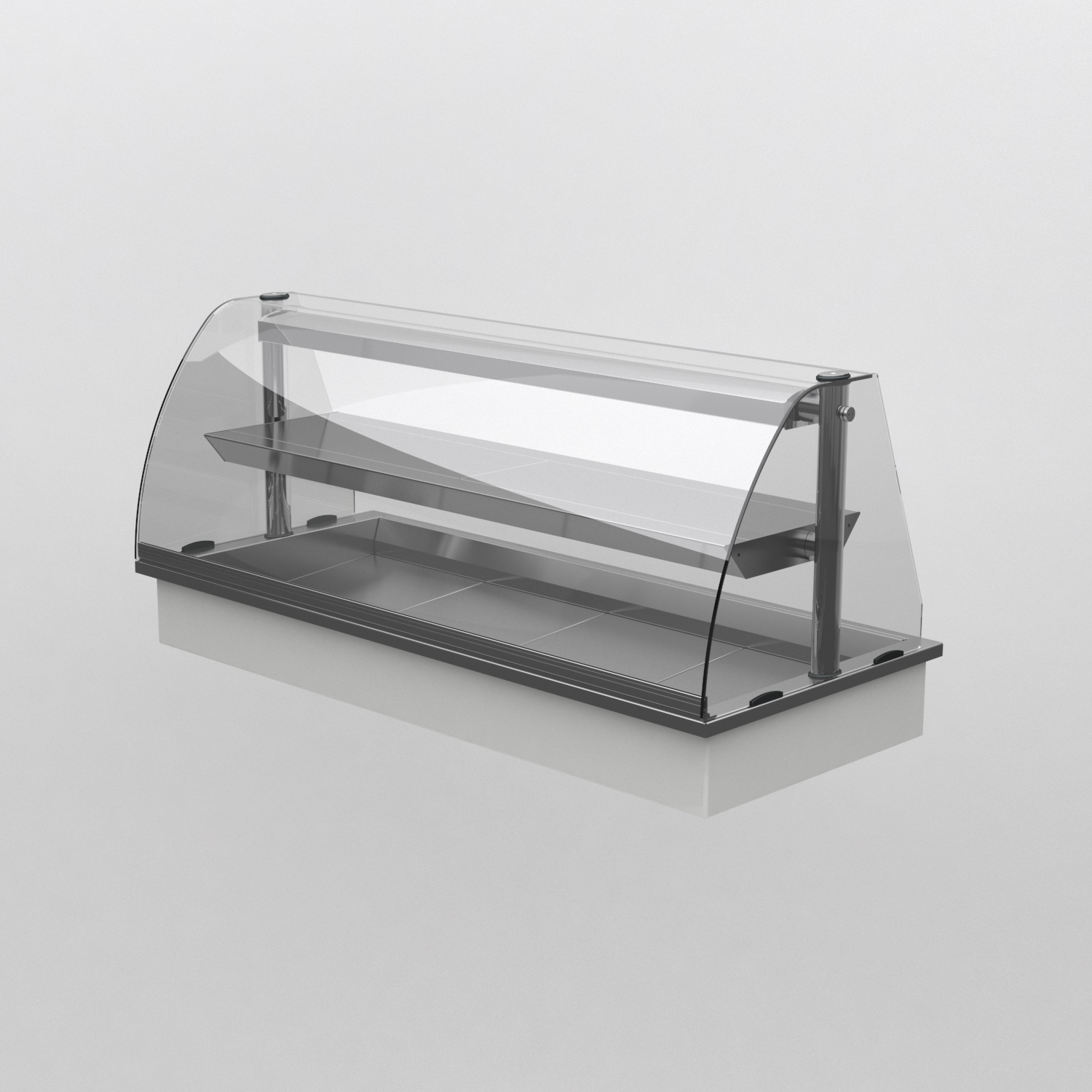

integrale - heated display deli

integrale - heated display deli

• Fully enclosed heated display deli designed for assisted service only.
• This display deli maintains pre-heated, cooked food at a regulated temperature.
• Base display area is angled towards the customer for optimum food presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
IHDL2-GO 2/1 825 x 660 x 535h 44 1.2
IHDL3-GO 3/1 1175 x 660 x 535h 60 1.8
IHDL4-GO 4/1 1525 x 660 x 535h 76 2.4
Downloads: DWG

Downloads: DWG

IHDL2-GO

IHDL2-GO

IHDL3-GO

IHDL3-GO

IHDL4-GO

IHDL4-GO

Downloads: PDF

Downloads: PDF

IHDL2-GO

IHDL2-GO

IHDL3-GO

IHDL3-GO

IHDL4-GO

IHDL4-GO

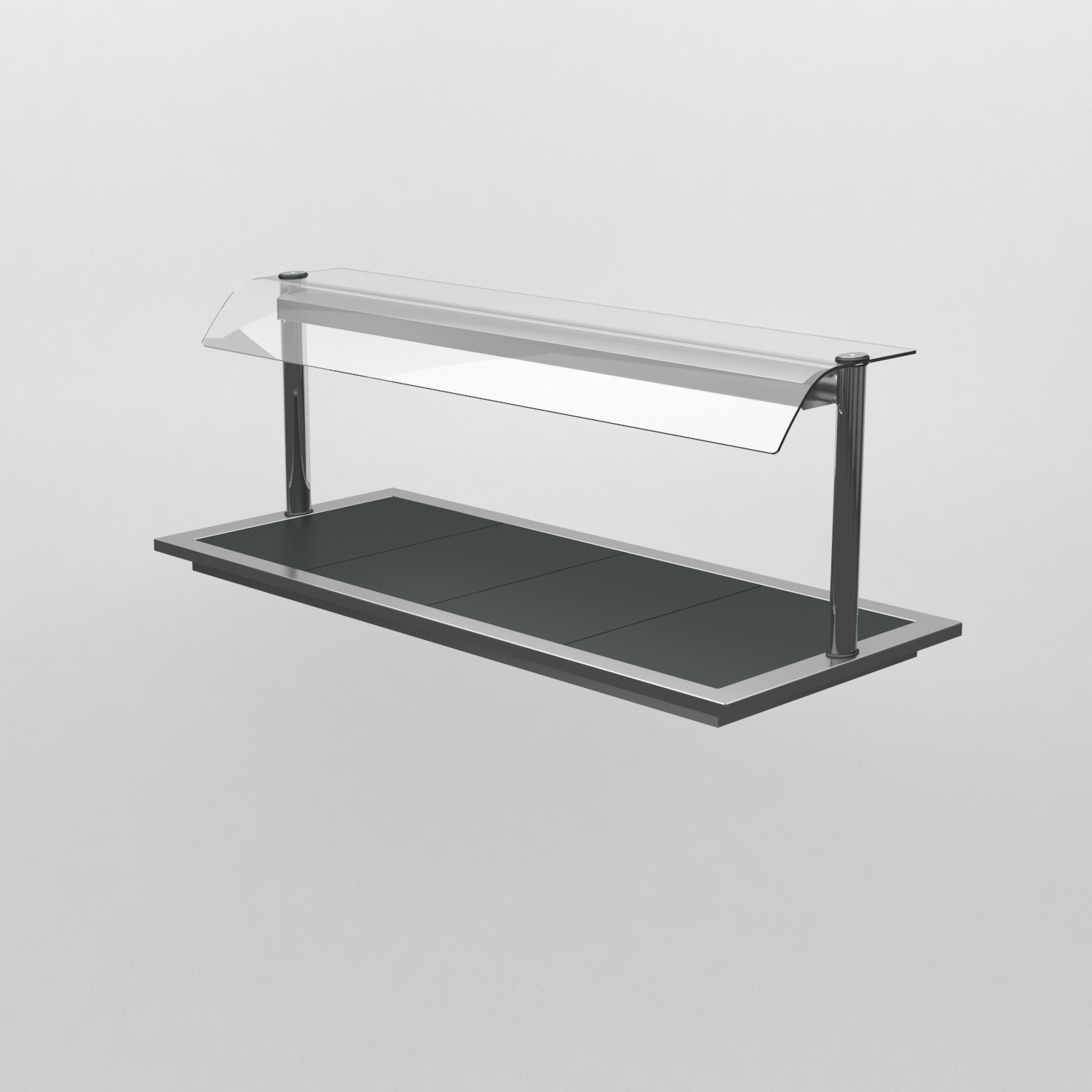

integrale - heated display ceramic glass hotplate

integrale - heated display ceramic glass hotplate

• A ceramic hotplate display with individual elements per gastronorm module, collectively controlled by a single electronic controller.
• This display maintains pre-heated, cooked food at a regulated temperature.
• Quartz heat lights over display controlled electronically.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
IHCGH2-GO 2/1 825 x 660 x 535h 29 1.0
IHCGH3-GO 3/1 1175 x 660 x 535h 39 1.5
IHCGH4-GO 4/1 1525 x 660 x 535h 50 1.9
IHCGH5-GO 5/1 1875 x 660 x 535h 61 2.4
IHCGH6-GO 6/1 2330 x 660 x 535h 75 2.9
Downloads: DWG

Downloads: DWG

IHCGH2-GO

IHCGH2-GO

IHCGH3-GO

IHCGH3-GO

IHCGH4-GO

IHCGH4-GO

IHCGH5-GO

IHCGH5-GO

IHCGH6-GO

IHCGH6-GO

Downloads: PDF

Downloads: PDF

IHCGH2-GO

IHCGH2-GO

IHCGH3-GO

IHCGH3-GO

IHCGH4-GO

IHCGH4-GO

IHCGH5-GO

IHCGH5-GO

IHCGH6-GO

IHCGH6-GO

integrale - heated display bain marie

integrale - heated display bain marie

• The heated display bain marie offers unparalleled flexibility of use.
• This display maintains pre-heated, cooked food at a regulated temperature.
• Controllable top and base heat.
• Available as a wet well bain marie or dry well bain marie.
• Available in assisted service or self service.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• Gastronorm containers are an optional extra.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Dry Well bain marie
IHBM2-GO 2/1 825 x 660 x 535h 30 1.5
IHBM3-GO 3/1 1175 x 660 x 535h 40 2.2
IHBM4-GO 4/1 1525 x 660 x 535h 51 2.9
IHBM5-GO 5/1 1875 x 660 x 535h 62 3.7
IHBM6-GO 6/1 2330 x 660 x 535h 89 4.4
Wet Well bain marie
IHWWBM2-GO 2/1 825 x 660 x 535h 30 1.9
IHWWBM3-GO 3/1 1175 x 660 x 535h 40 3.1
IHWWBM4-GO 4/1 1525 x 660 x 535h 51 3.9
IHWWBM5-GO 5/1 1875 x 660 x 535h 62 5.1
IHWWBM6-GO 6/1 2330 x 660 x 535h 89 6.3
Downloads: DWG

Downloads: DWG

IHBM2-GO

IHBM2-GO

IHBM3-GO

IHBM3-GO

IHBM4-GO

IHBM4-GO

IHBM5-GO

IHBM5-GO

IHBM6-GO

IHBM6-GO

IHWWBM2-GO

IHWWBM2-GO

IHWWBM3-GO

IHWWBM3-GO

IHWWBM4-GO

IHWWBM4-GO

IHWWBM5-GO

IHWWBM5-GO

IHWWBM6-GO

IHWWBM6-GO

Downloads: PDF

Downloads: PDF

IHBM2-GO

IHBM2-GO

IHBM3-GO

IHBM3-GO

IHBM4-GO

IHBM4-GO

IHBM5-GO

IHBM5-GO

IHBM6-GO

IHBM6-GO

IHWWBM2-GO

IHWWBM2-GO

IHWWBM3-GO

IHWWBM3-GO

IHWWBM4-GO

IHWWBM4-GO

IHWWBM5-GO

IHWWBM5-GO

IHWWBM6-GO

IHWWBM6-GO
