vision aire - open fronted heated self help
• Open fronted hot holding display cabinets maintain pre-heated cooked food at a regulated temperature.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
• The electric controller can be installed on customer side (GC) with fixed back.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
• The electric controller can be installed on customer side (GC) with fixed back.
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |

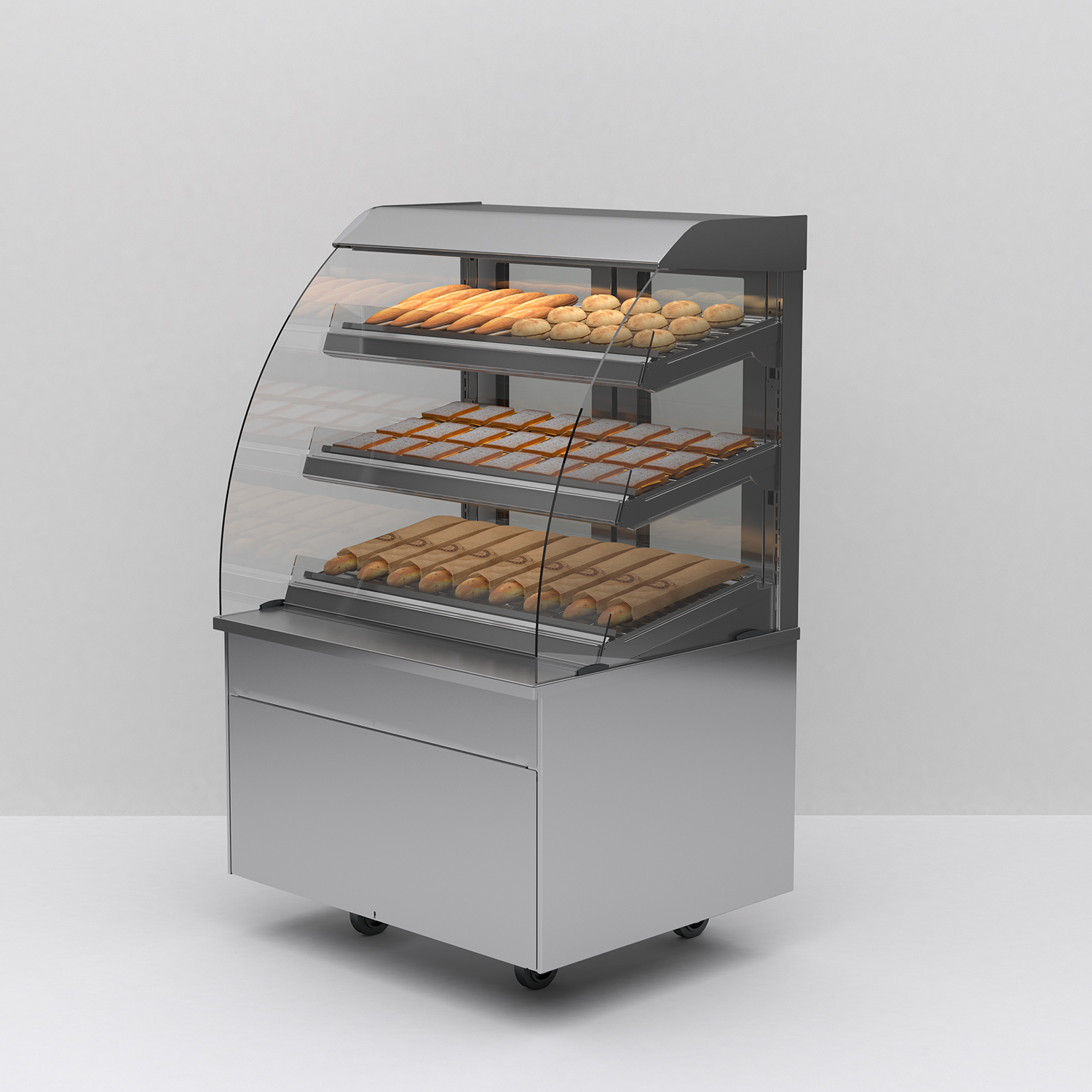

| VOHF600-GO | 600 x 750 x 1465h | 110 | 3.0 |
| VOHF900-GO | 900 x 750 x 1465h | 159 | 3.0 |
| VOHF1200-GO | 1200 x 750 x 1465h | 200 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VOHF600-GC | 600 x 750 x 1465h | 110 | 3.0 |
| VOHF900-GC | 900 x 750 x 1465h | 159 | 3.0 |
| VOHF1200-GC | 1200 x 750 x 1465h | 200 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |

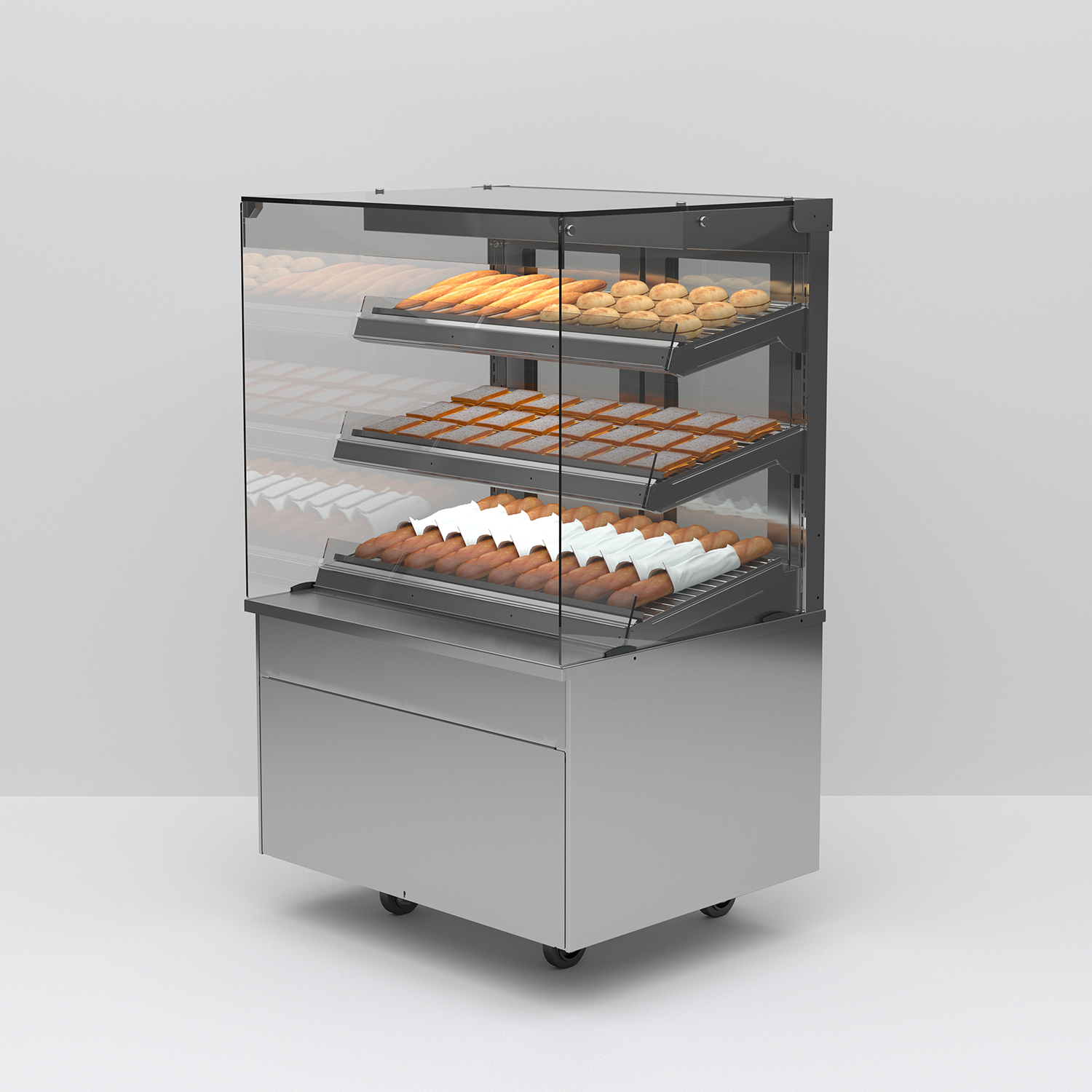

| SVOHF600-GO | 600 x 750 x 1470h | 116 | 3.0 |
| SVOHF900-GO | 900 x 750 x 1470h | 167 | 3.0 |
| SVOHF1200-GO | 1200 x 750 x 1470h | 210 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVOHF600-GC | 600 x 750 x 1470h | 116 | 3.0 |
| SVOHF900-GC | 900 x 750 x 1470h | 167 | 3.0 |
| SVOHF1200-GC | 1200 x 750 x 1470h | 210 | 3.0 |

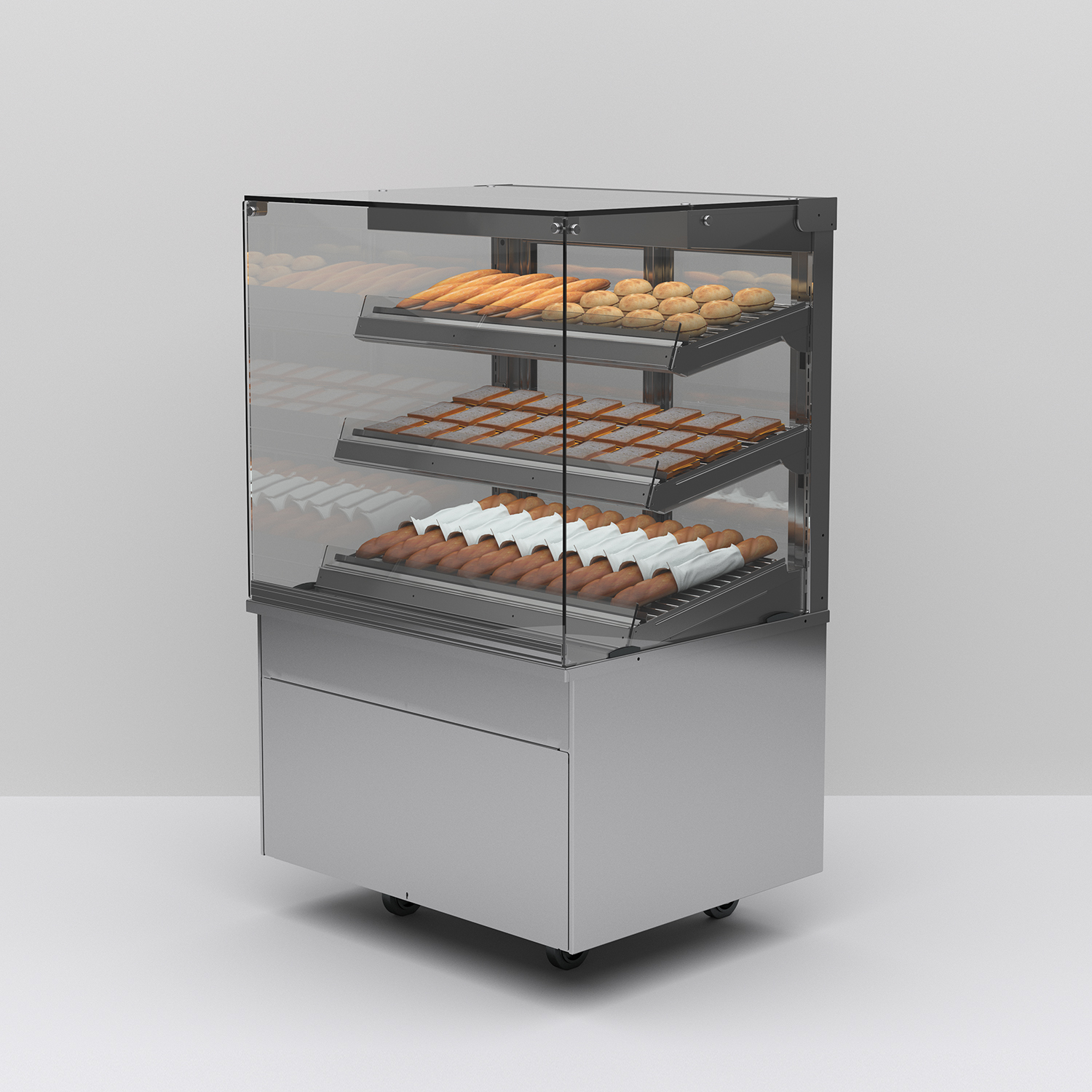

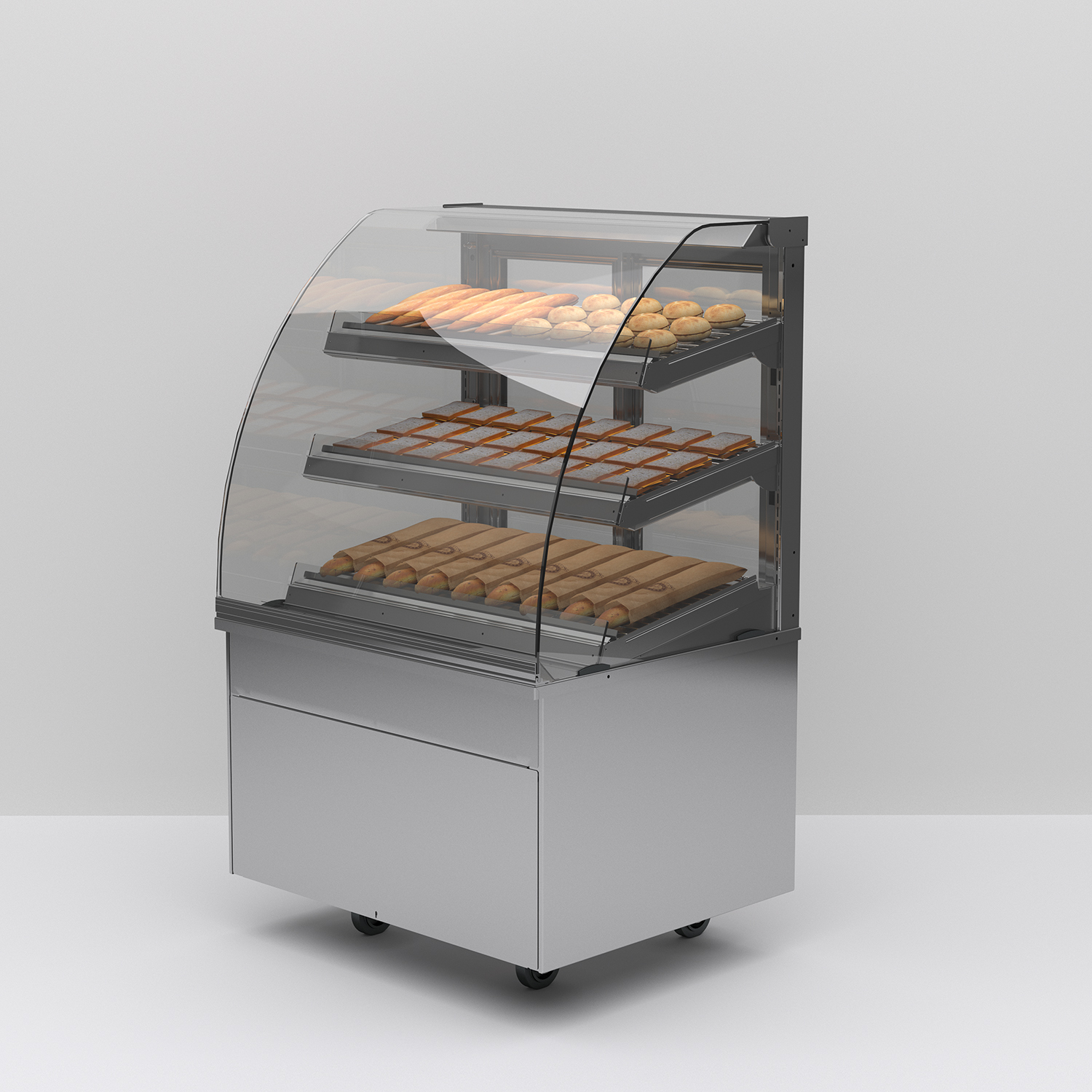

vision aire - enclosed heated assisted service
• Fully enclosed hot holding display assisted service maintains pre-heated cooked food at a regulated temperature.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVHF600-GO | 600 x 750 x 1470h | 122 | 3.0 |
| SVHF900-GO | 900 x 750 x 1470h | 173 | 3.0 |
| SVHF1200-GO | 1200 x 750 x 1470h | 216 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VHF600-GO | 600 x 750 x 1465h | 116 | 3.0 |
| VHF900-GO | 900 x 750 x 1465h | 165 | 3.0 |
| VHF1200-GO | 1200 x 750 x 1465h | 206 | 3.0 |

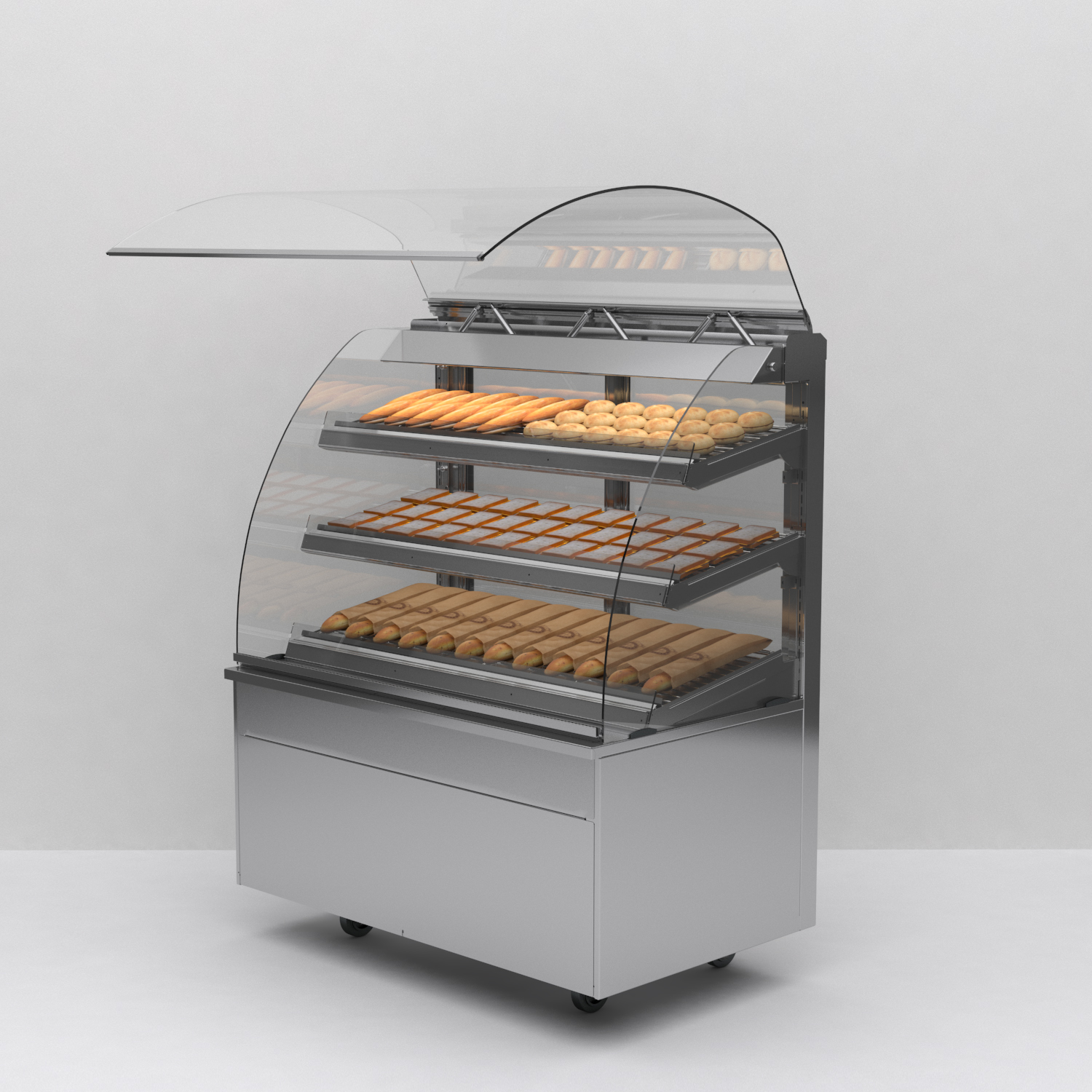

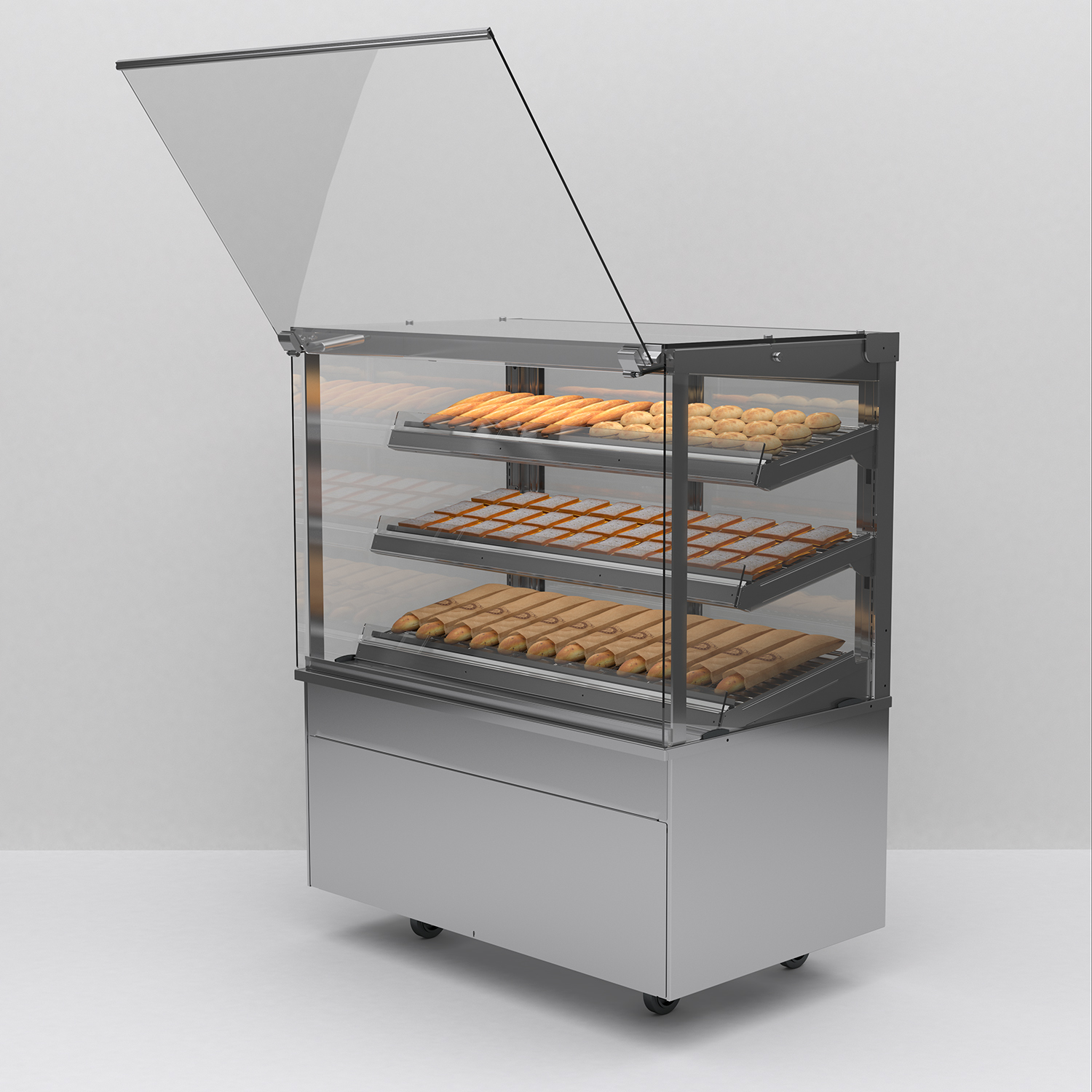

vision aire - enclosed heated assisted service with hydraulic gas assisted hinges
• Fully enclosed display maintains pre-heated cooked food at a regulated temperature.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Illumination to all shelf levels.
• Castors included as standard which give an overall height of 1465mm.
• Adjustable low level feet reducing overall height to 1400mm available as an optional extra.
• Produce displayed on bright polished stainless steel wire racks.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) with rear doors.
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVHFL600-GO | 600 x 750 x 1470h | 122 | 3.0 |
| SVHFL900-GO | 900 x 750 x 1470h | 173 | 3.0 |
| SVHFL1200-GO | 1200 x 750 x 1470h | 216 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VHFL600-GO | 600 x 750 x 1465h | 116 | 3.0 |
| VHFL900-GO | 900 x 750 x 1465h | 165 | 3.0 |
| VHFL1200-GO | 1200 x 750 x 1465h | 206 | 3.0 |

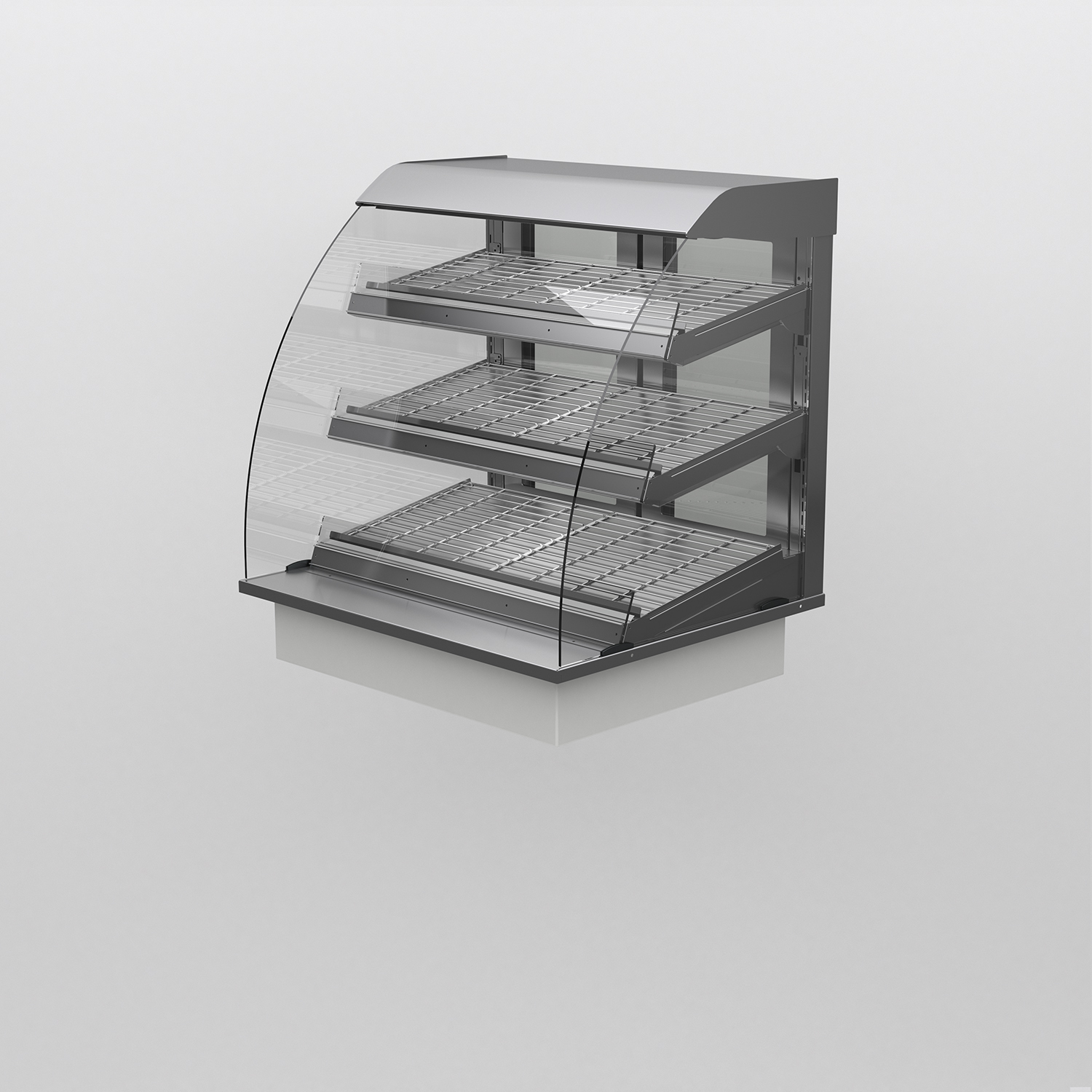

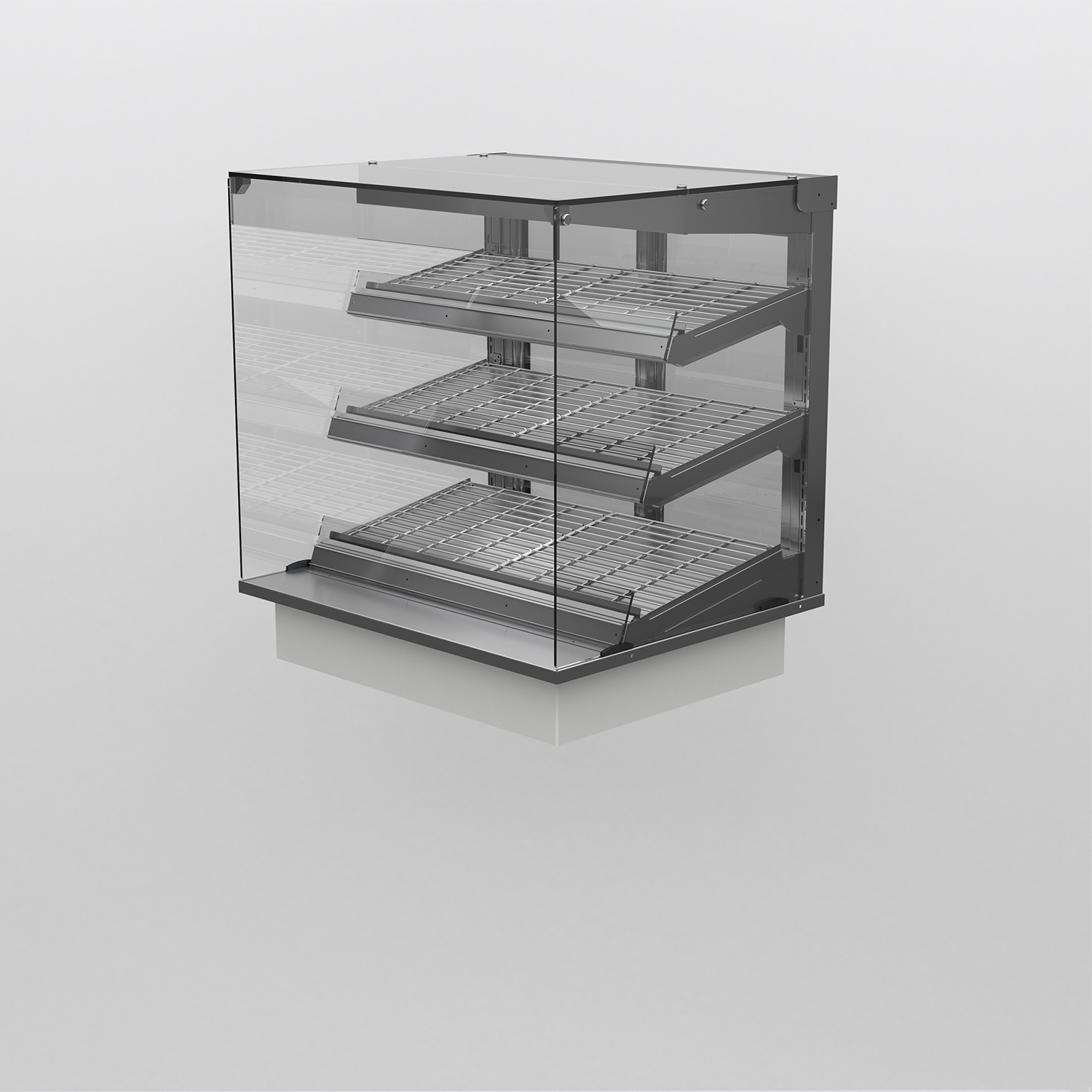

vision aire - open fronted heated self help drop-in
• Open fronted countertop display unit maintains pre-heated cooked food at a regulated temperature.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Two shelves and a base with illumination to all shelf levels.
• Fixed back (GC) as standard, rear doors (GO) optional.
• Produce displayed on bright polished stainless steel shelf covers.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Eye level electronic controller installed on operators side (GO) with rear doors.
• The electric controller can be installed on customer side (GC) with fixed back.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Two shelves and a base with illumination to all shelf levels.
• Fixed back (GC) as standard, rear doors (GO) optional.
• Produce displayed on bright polished stainless steel shelf covers.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Eye level electronic controller installed on operators side (GO) with rear doors.
• The electric controller can be installed on customer side (GC) with fixed back.
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VOHFDI600-GO | 600 x 750 x 826h | 70 | 3.0 |
| VOHFDI900-GO | 900 x 750 x 826h | 84 | 3.0 |
| VOHFDI1200-GO | 1200 x 750 x 826h | 108 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VOHFDI600-GC | 600 x 750 x 826h | 70 | 3.0 |
| VOHFDI900-GC | 900 x 750 x 826h | 84 | 3.0 |
| VOHFDI1200-GC | 1200 x 750 x 826h | 108 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVOHFDI600-GO | 600 x 750 x 834h | 76 | 3.0 |
| SVOHFDI900-GO | 900 x 750 x 834h | 92 | 3.0 |
| SVOHFDI1200-GO | 1200 x 750 x 834h | 118 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVOHFDI600-GC | 600 x 750 x 834h | 76 | 3.0 |
| SVOHFDI900-GC | 900 x 750 x 834h | 92 | 3.0 |
| SVOHFDI1200-GC | 1200 x 750 x 834h | 118 | 3.0 |
Downloads: DWG

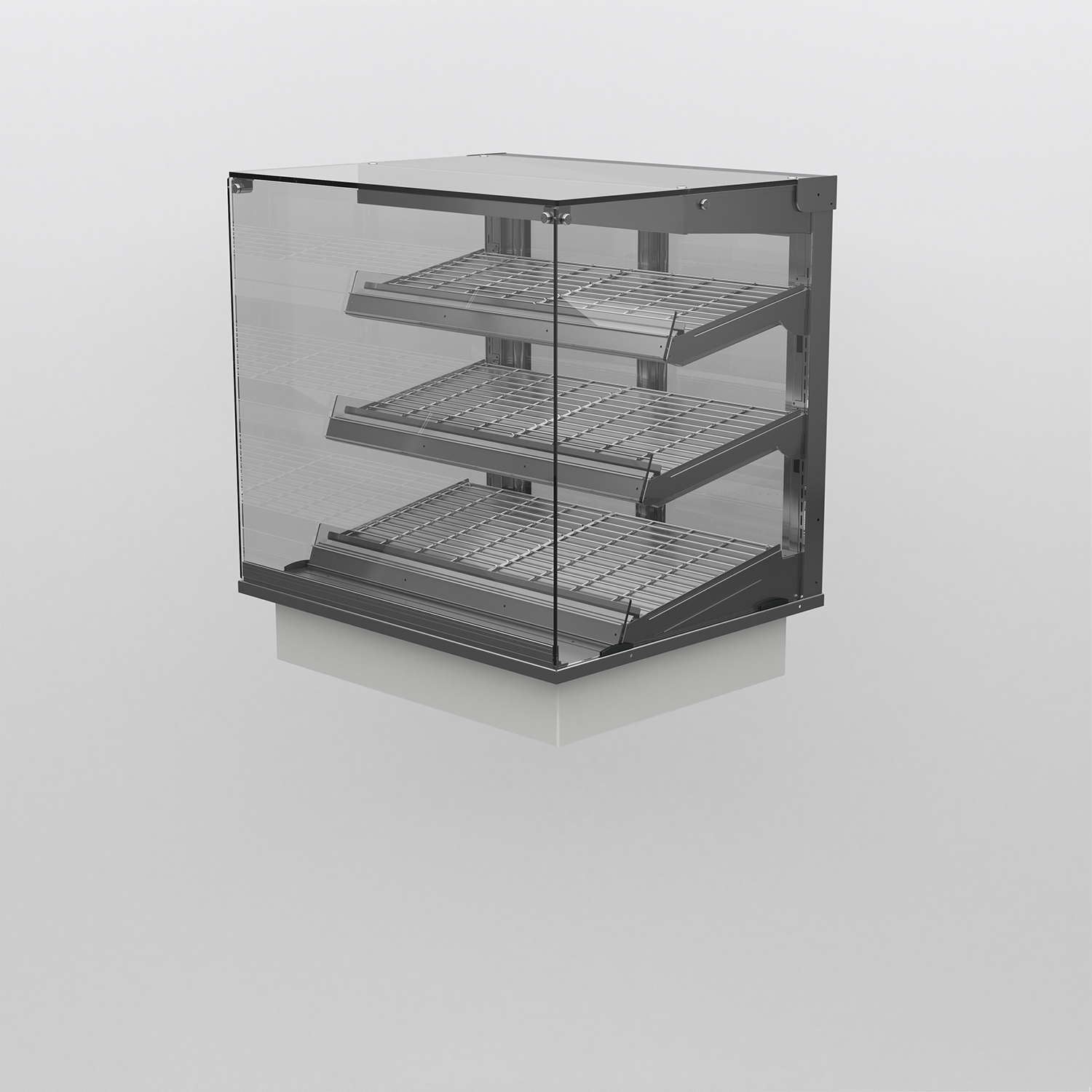

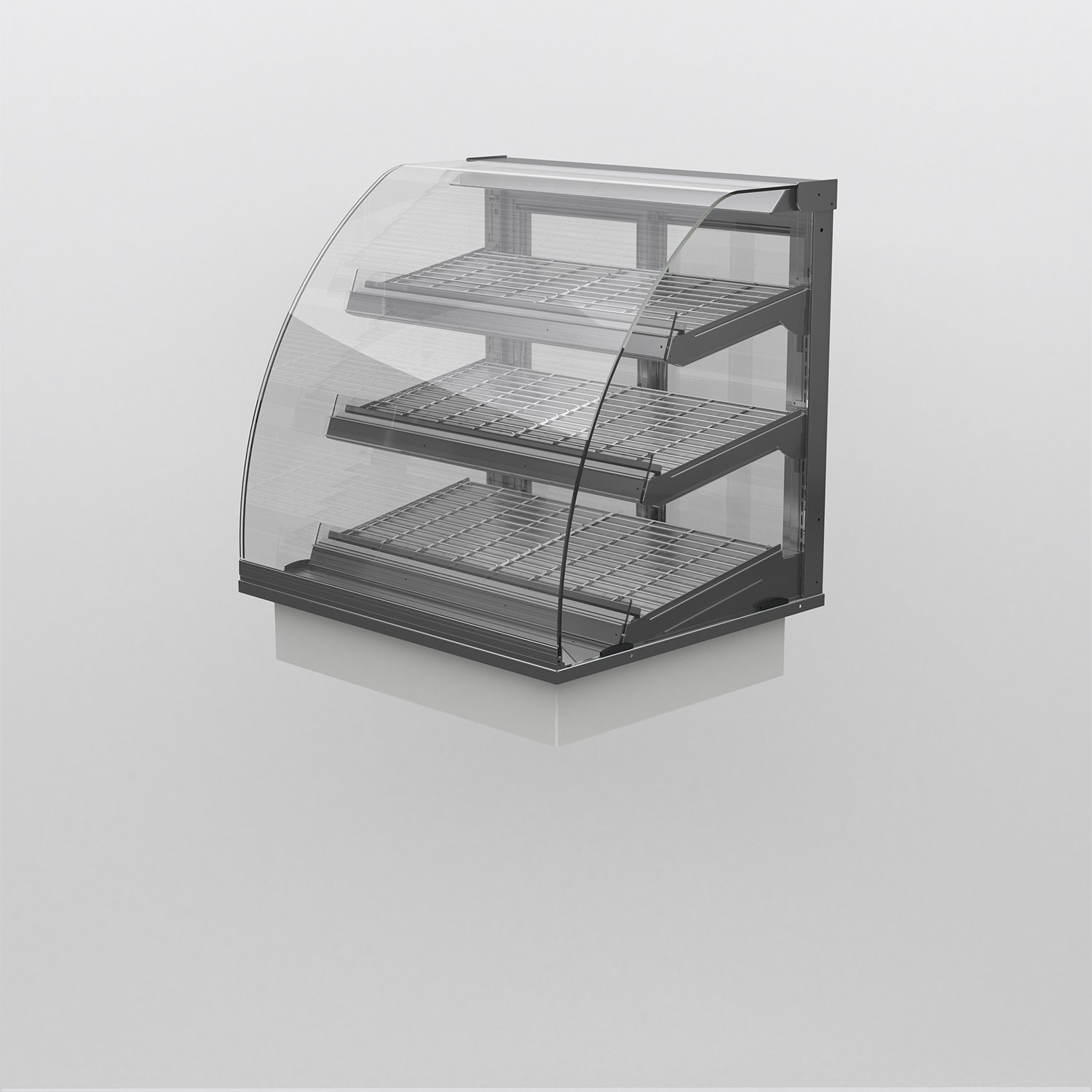

vision aire - enclosed heated assisted service drop-in
• Fully enclosed display maintains pre-heated cooked food at a regulated temperature.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Two shelves and a base with illumination to all shelf levels.
• Produce displayed on bright polished stainless steel shelf covers.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) as standard.
• Ideal for hot rolls, pies, pasties, chicken portions etc.
• Two shelves and a base with illumination to all shelf levels.
• Produce displayed on bright polished stainless steel shelf covers.
• Shelf covers are removable for cleaning.
• Digital temperature panel allowing control settings for each individual shelf panel.
• Electronic controller installed on operators side (GO) as standard.
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| VHFDI600-GO | 600 x 750 x 826h | 73 | 3.0 |
| VHFDI900-GO | 900 x 750 x 826h | 87 | 3.0 |
| VHFDI1200-GO | 1200 x 750 x 826h | 111 | 3.0 |
| Stock | Overall Size | Weight | Wattage |
| Code | mm | kg | kw |
| SVHFDI600-GO | 600 x 750 x 834h | 79 | 3.0 |
| SVHFDI900-GO | 900 x 750 x 834h | 95 | 3.0 |
| SVHFDI1200-GO | 1200 x 750 x 834h | 121 | 3.0 |
