Heated manhattan Units

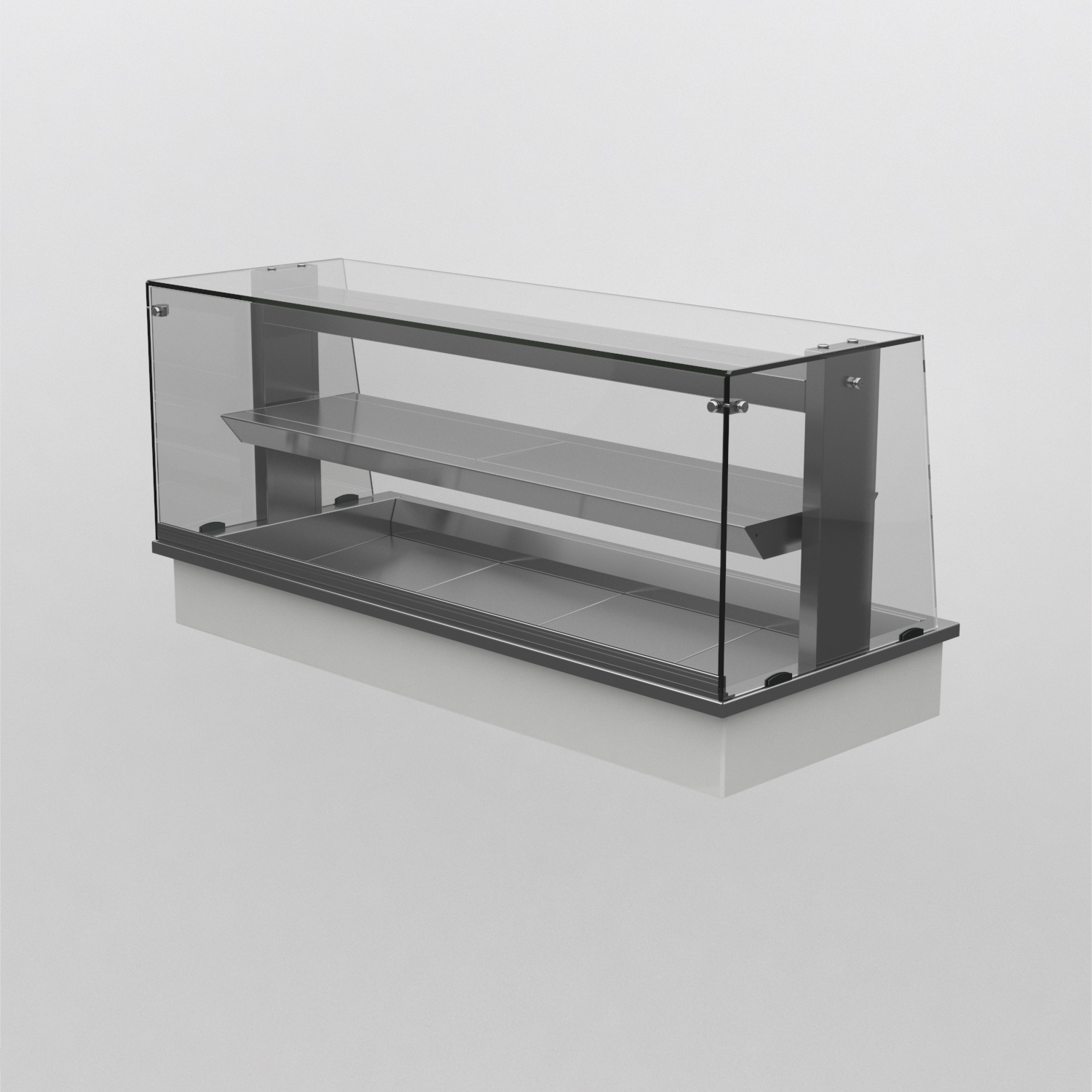

manhattan - heated display deli

manhattan - heated display deli

• Fully enclosed heated display deli designed for assisted service only.
• This display maintains pre-heated, cooked food at a regulated temperature.
• Base display area is angled towards the customer for optimum food presentation.
• Gantry mounted controller installed on operators side (GO) as standard.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
MHDL2-GO 2/1 825 x 660 x 560h 44 1.2
MHDL3-GO 3/1 1175 x 660 x 560h 60 1.8
MHDL4-GO 4/1 1525 x 660 x 560h 76 2.4
Downloads: DWG

Downloads: DWG

MHDL2-GO

MHDL2-GO

MHDL3-GO

MHDL3-GO

MHDL4-GO

MHDL4-GO

Downloads: PDF

Downloads: PDF

MHDL2-GO

MHDL2-GO

MHDL3-GO

MHDL3-GO

MHDL4-GO

MHDL4-GO

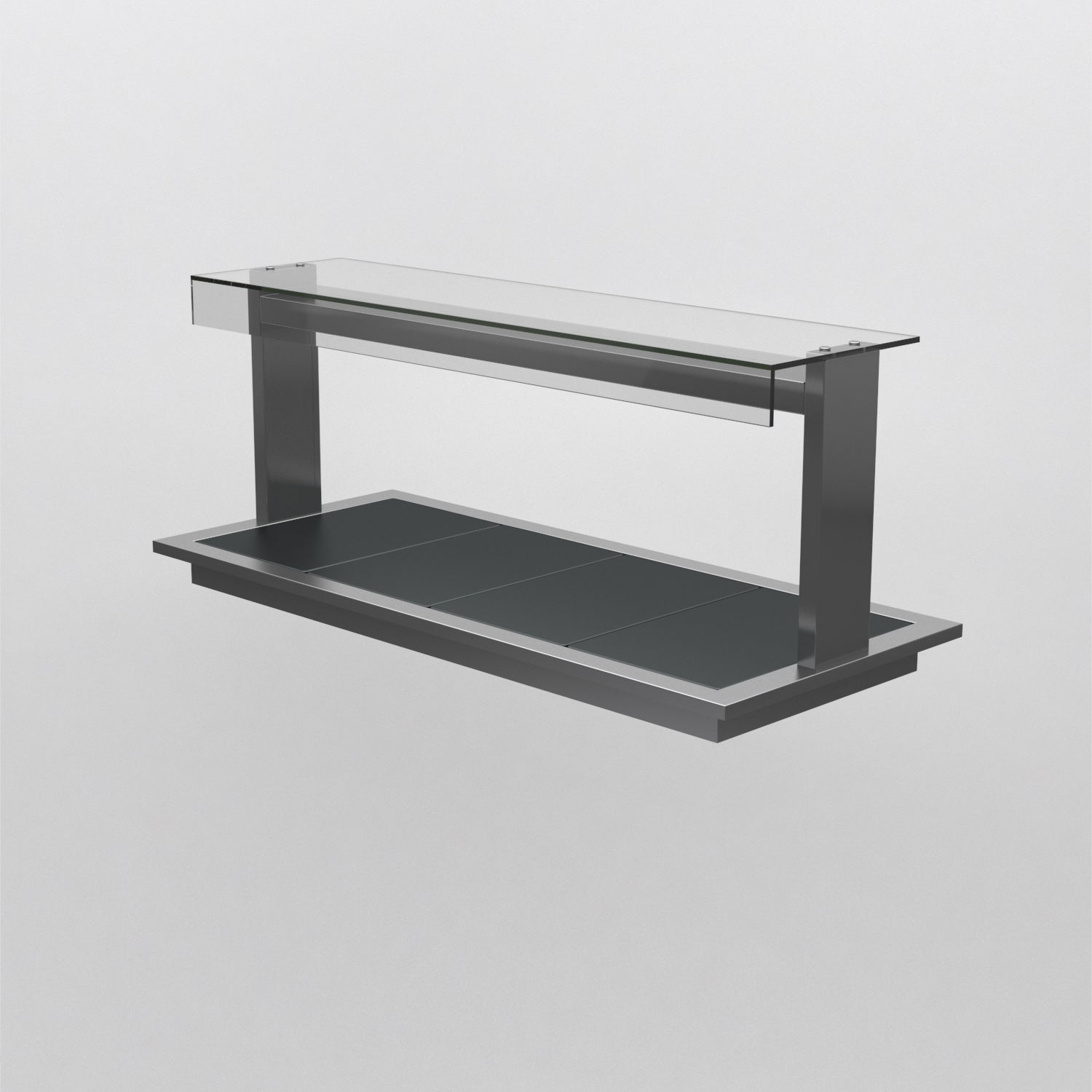

manhattan - heated ceramic glass hotplate

manhattan - heated ceramic glass hotplate

• This display maintains pre-heated, cooked food at a regulated temperature
• A ceramic hotplate display with individual elements per gastronorm module, collectively controlled by a single electronic controller.
• Quartz heat lights over display controlled electronically.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
MHCGH2-GO 2/1 825 x 660 x 560h 29 1.0
MHCGH3-GO 3/1 1175 x 660 x 560h 39 1.5
MHCGH4-GO 4/1 1525 x 660 x 560h 50 1.9
MHCGH5-GO 5/1 1875 x 660 x 560h 61 2.4
MHCGH6-GO 6/1 2330 x 660 x 560h 75 2.9
Downloads: DWG

Downloads: DWG

MHCGH2-GO

MHCGH2-GO

MHCGH3-GO

MHCGH3-GO

MHCGH4-GO

MHCGH4-GO

MHCGH5-GO

MHCGH5-GO

MHCGH6-GO

MHCGH6-GO

Downloads: PDF

Downloads: PDF

MHCGH2-GO

MHCGH2-GO

MHCGH3-GO

MHCGH3-GO

MHCGH4-GO

MHCGH4-GO

MHCGH5-GO

MHCGH5-GO

MHCGH6-GO

MHCGH6-GO

manhattan - heated display bain marie

manhattan - heated display bain marie

• The heated display bain marie offers unparalleled fexibility of use.
• This display maintains pre-heated, cooked food at a regulated temperature.
• Controllable top and base heat.
• Available as a wet well bain marie or dry well bain marie.
• Available in assisted service or self service.
• Gantry mounted controller installed on operators side (GO) as standard.
• The gantry controller can be installed on customer side (GC) on request.
• Gastronorm containers are an optional extra.
• A wide range of optional extras are available for this display.
Stock Capacity Overall Size Weight Wattage
Code gn mm kg kw
Dry Well bain marie
MHBM2-GO 2/1 825 x 660 x 560h 30 1.5
MHBM3-GO 3/1 1175 x 660 x 560h 40 2.2
MHBM4-GO 4/1 1525 x 660 x 560h 51 2.9
MHBM5-GO 5/1 1875 x 660 x 560h 62 3.7
MHBM6-GO 6/1 2330 x 660 x 560h 89 4.4
Wet Well bain marie
MHWWBM2-GO 2/1 825 x 660 x 560h 30 1.9
MHWWBM3-GO 3/1 1175 x 660 x 560h 40 3.1
MHWWBM4-GO 4/1 1525 x 660 x 560h 51 3.9
MHWWBM5-GO 5/1 1875 x 660 x 560h 62 5.1
MHWWBM6-GO 6/1 2330 x 660 x 560h 89 6.3
Downloads: DWG

Downloads: DWG

MHBM2-GO

MHBM2-GO

MHBM3-GO

MHBM3-GO

MHBM4-GO

MHBM4-GO

MHBM5-GO

MHBM5-GO

MHBM6-GO

MHBM6-GO

MHWWBM2-GO

MHWWBM2-GO

MHWWBM3-GO

MHWWBM3-GO

MHWWBM4-GO

MHWWBM4-GO

MHWWBM5-GO

MHWWBM5-GO

MHWWBM6-GO

MHWWBM6-GO

Downloads: PDF

Downloads: PDF

MHBM2-GO

MHBM2-GO

MHBM3-GO

MHBM3-GO

MHBM4-GO

MHBM4-GO

MHBM5-GO

MHBM5-GO

MHBM6-GO

MHBM6-GO

MHWWBM2-GO

MHWWBM2-GO

MHWWBM3-GO

MHWWBM3-GO

MHWWBM4-GO

MHWWBM4-GO

MHWWBM5-GO

MHWWBM5-GO

MHWWBM6-GO

MHWWBM6-GO
