Optional extras
All Displays
Shelf edge ticket strips (clear).
Export packing case.
We strongly recommend the purchase of export packing cases for goods exported outside of mainland UK.
Shelf edge ticket strips (clear).
Export packing case.
We strongly recommend the purchase of export packing cases for goods exported outside of mainland UK.
| Rear Doors | ||
| Display | Door Code | £ |
| EA600 | EDR10 | £291 |
| EA900 | EDR11 | £554 |
| EA1200 | EDR12 | £554 |
Standard technical specifications
All Displays
General construction from 304 and 430 grade polished stainless steel.
All glass 6mm toughened.
Full internal fuse protection.
General construction from 304 and 430 grade polished stainless steel.
All glass 6mm toughened.
Full internal fuse protection.
Heated Displays
Product temperature maintained at 65-72°C in 25°C ambient.
Heat source mat elements controlled by single energy regulator.
Product temperature maintained at 65-72°C in 25°C ambient.
Heat source mat elements controlled by single energy regulator.
Chilled Displays
Chilled by recirculated cold air using fan blown evaporator.
Integral condensing unit and automatic condensate evaporator.
Re-settable high pressure safety switch.
Digital electronic temperature control.
Display temperature 3-5°C in 25°C ambient at 50% relative humidity.
Chilled by recirculated cold air using fan blown evaporator.
Integral condensing unit and automatic condensate evaporator.
Re-settable high pressure safety switch.
Digital electronic temperature control.
Display temperature 3-5°C in 25°C ambient at 50% relative humidity.
Power Supplies
All units are supplied with a 3.5m lead suitable for use with a 220/240volt supply.
Heated Experience supplied with semi armoured cable and requires 32amp single phase 220/240 volt supply.
We strongly recommend that the supply is protected by a suitably rated residu- al current protection device.
All units are supplied with a 3.5m lead suitable for use with a 220/240volt supply.
Heated Experience supplied with semi armoured cable and requires 32amp single phase 220/240 volt supply.
We strongly recommend that the supply is protected by a suitably rated residu- al current protection device.
Wattage
Units range from 0.2kw to 4.0kw.
Units up to 3kw are supplied complete with 13amp plug-top. Items above 3kw will need to be hardwired or fitted with commando plug.
Units range from 0.2kw to 4.0kw.
Units up to 3kw are supplied complete with 13amp plug-top. Items above 3kw will need to be hardwired or fitted with commando plug.

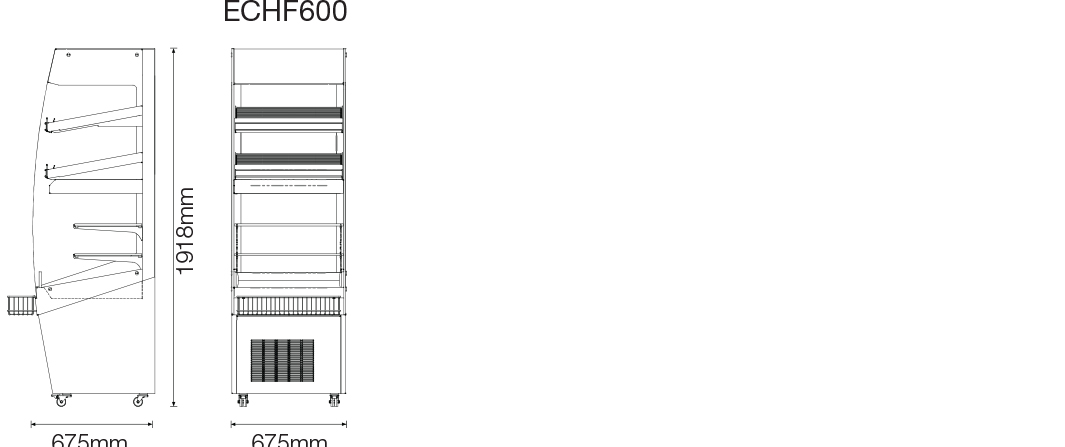

new experience chilled & heated fan assisted display

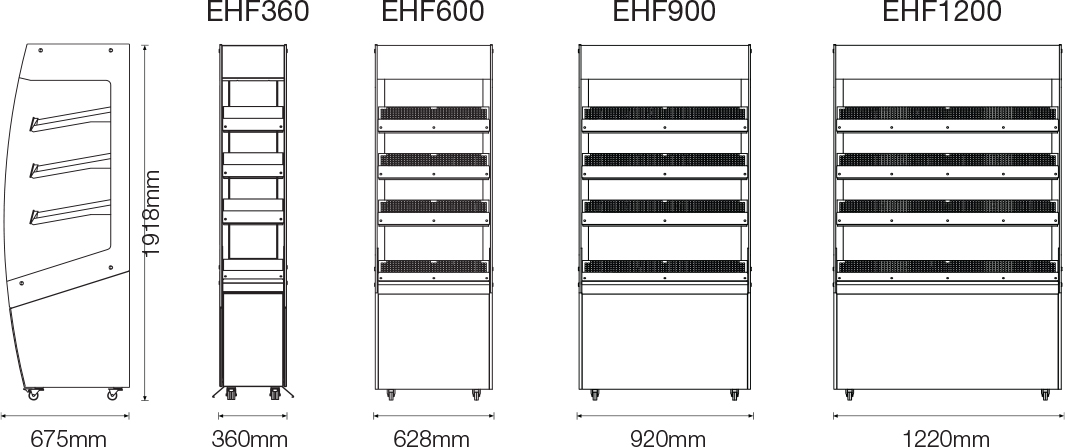

new experience heated self help merchandiser

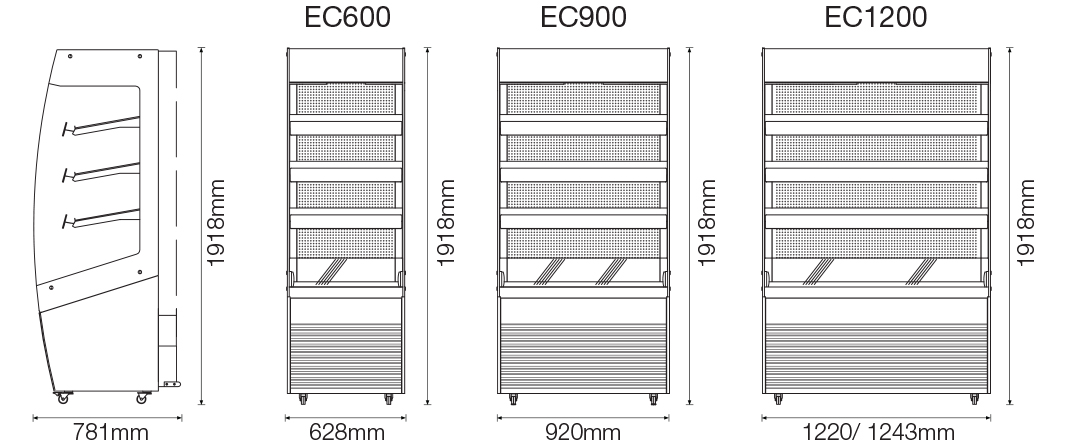

new experience chilled self help merchandiser

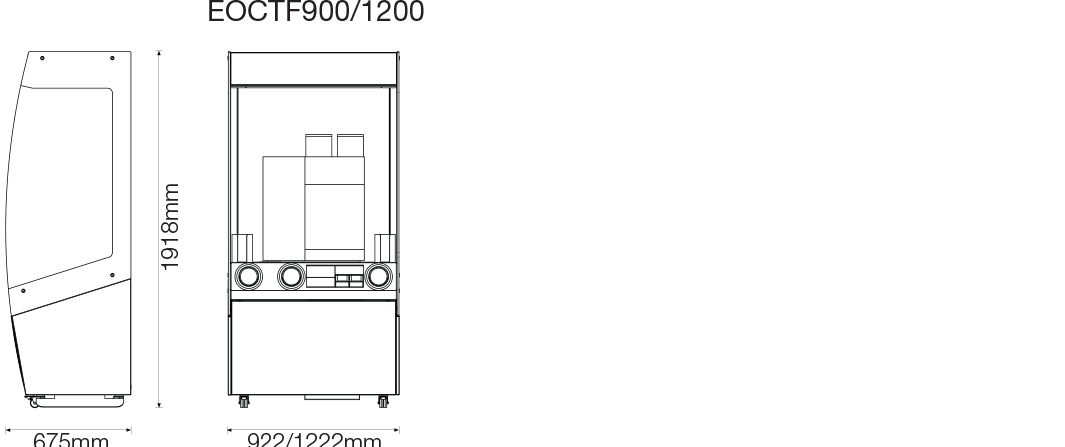

new experience coffee station
