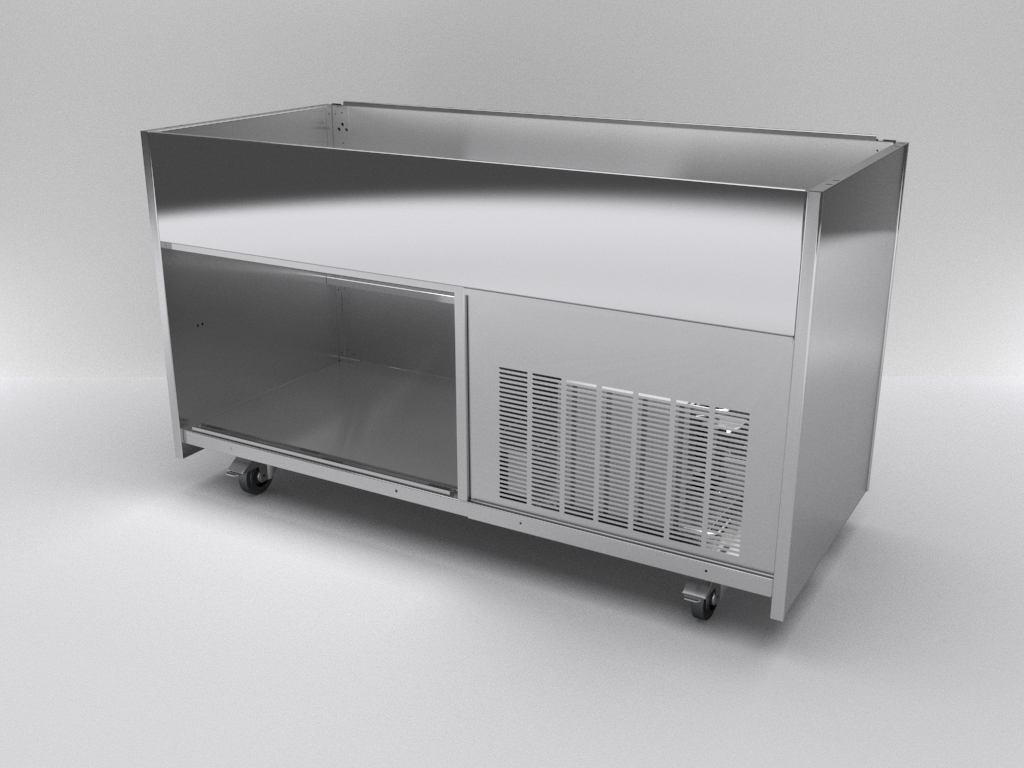

ambient void: chilled drop-in
• Accepts all integrale, da vinci and manhattan standard width displays.
• displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
• displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
| Stock | Capacity | Overall Size | Weight | Wattage |
| Code | gn | mm | kg | kw |
| Standard Base Unit | ||||
| DC-C2 | 2/1 | 825(w) x 660(d) x 900(h) | 43 | N/A |
| DC-C3 | 3/1 | 1175(w) x 660(d) x 900(h) | 53 | N/A |
| DC-C4 | 4/1 | 1525(w) x 660(d) x 900(h) | 66 | N/A |
| DC-C5 | 5/1 | 1875(w) x 660(d) x 900(h) | 75 | N/A |
| Wide Base Unit | ||||
| DC-CW2 | 2/1 | 825(w) x 810(d) x 900(h) | 53 | N/A |
| DC-CW3 | 3/1 | 1175(w) x 810(d) x 900(h) | 65 | N/A |
| DC-CW4 | 4/1 | 1525(w) x 810(d) x 900(h) | 81 | N/A |
| DC-CW5 | 5/1 | 1875 (w) x 810(d) x 900(h) | 92 | N/A |
Downloads: DWG
DC-C2
DC-C3
DC-C4
DC-C5
DC-CW2
DC-CW3
DC-CW4
DC-CW5

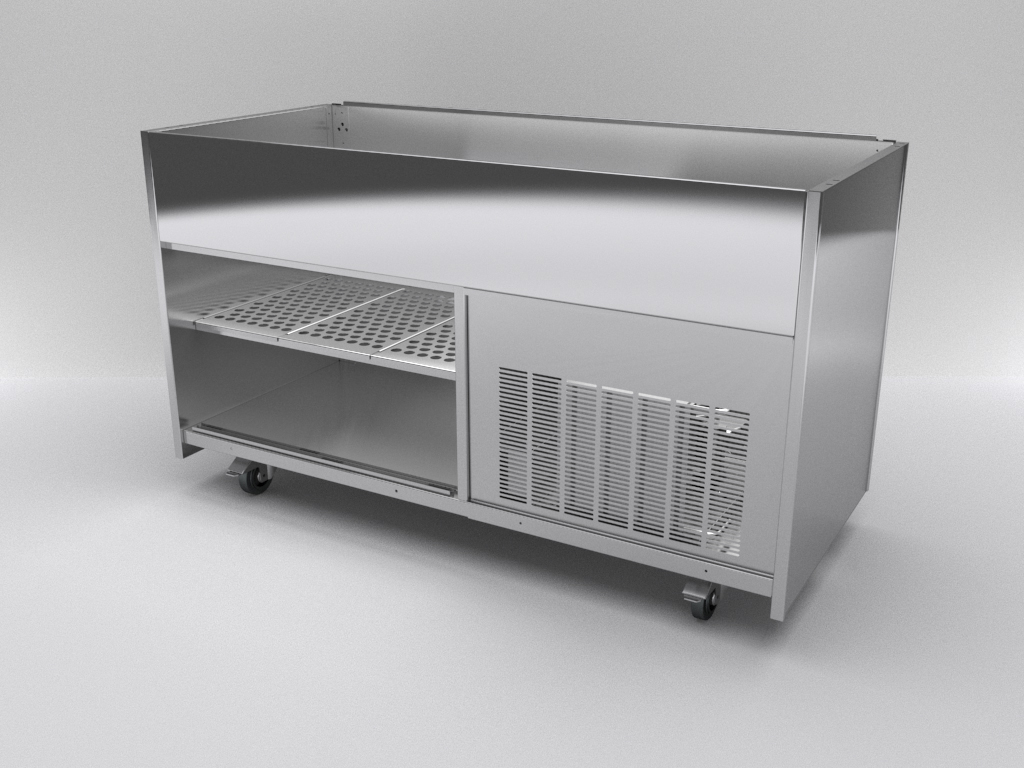

ambient void & shelf: chilled drop-in
• Accepts all integrale, da vinci and manhattan standard width displays.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
| Stock | Capacity | Overall Size | Weight | Wattage |
| Code | gn | mm | kg | kw |
| Standard Base Unit | ||||
| DC-CS3 | 3/1 | 1175(w) x 660(d) x 900(h) | 58 | N/A |
| DC-CS4 | 4/1 | 1525(w) x 660(d) x 900(h) | 72 | N/A |
| DC-CS5 | 5/1 | 1875(w) x 660(d) x 900(h) | 82 | N/A |
| Wide Base Unit | ||||
| DC-CSW3 | 3/1 | 1175(w) x 810(d) x 900(h) | 71 | N/A |
| DC-CSW4 | 4/1 | 1525(w) x 810(d) x 900(h) | 89 | N/A |
| DC-CSW5 | 5/1 | 1875 (w) x 810(d) x 900(h) | 101 | N/A |
Downloads: DWG
DC-CS3
DC-CS4
DC-CS5
DC-CSW3
DC-CSW4
DC-CSW5

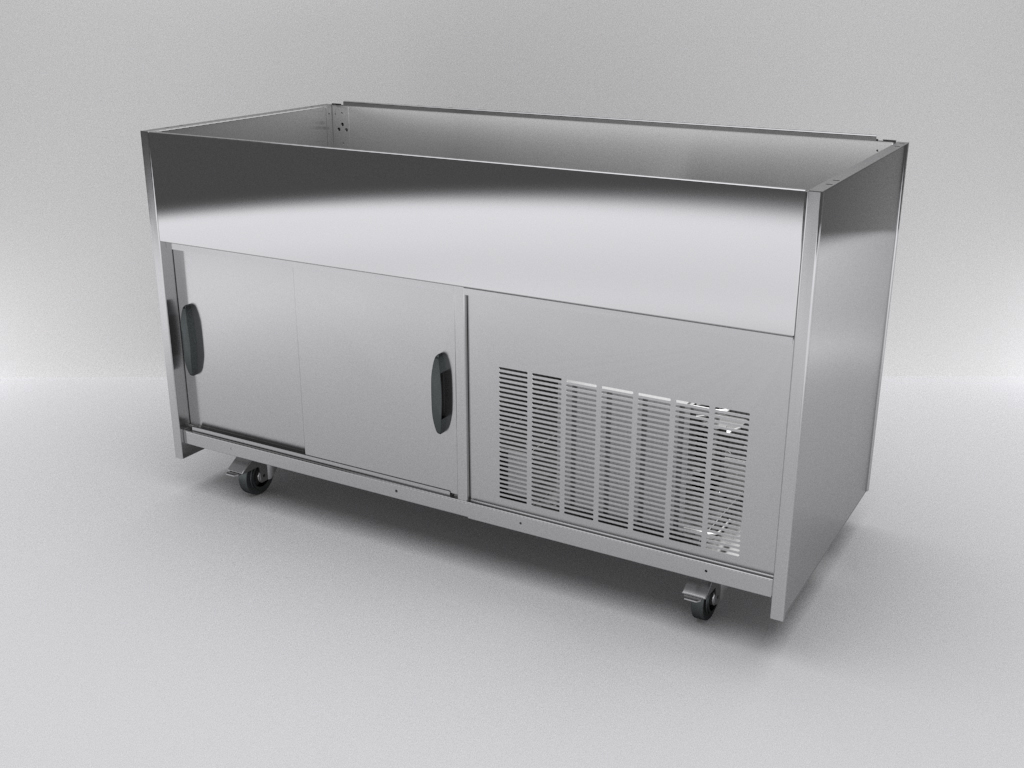

ambient cupboard: chilled drop-in
• Accepts all integrale, da vinci and manhattan standard width displays.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
| Stock | Capacity | Overall Size | Weight | Wattage |
| Code | gn | mm | kg | kw |
| Standard Base Unit | ||||
| DC-CD4 | 4/1 | 1525(w) x 660(d) x 900(h) | 76 | N/A |
| DC-CD5 | 5/1 | 1875(w) x 660(d) x 900(h) | 86 | N/A |
| Wide Base Unit | ||||
| DC-CDW4 | 4/1 | 1525(w) x 810(d) x 900(h) | 94 | N/A |
| DC-CDW5 | 5/1 | 1875 (w) x 810(d) x 900(h) | 106 | N/A |
Downloads: DWG
DC-CS4
DC-CS5
DC-CDW4
DC-CSW5

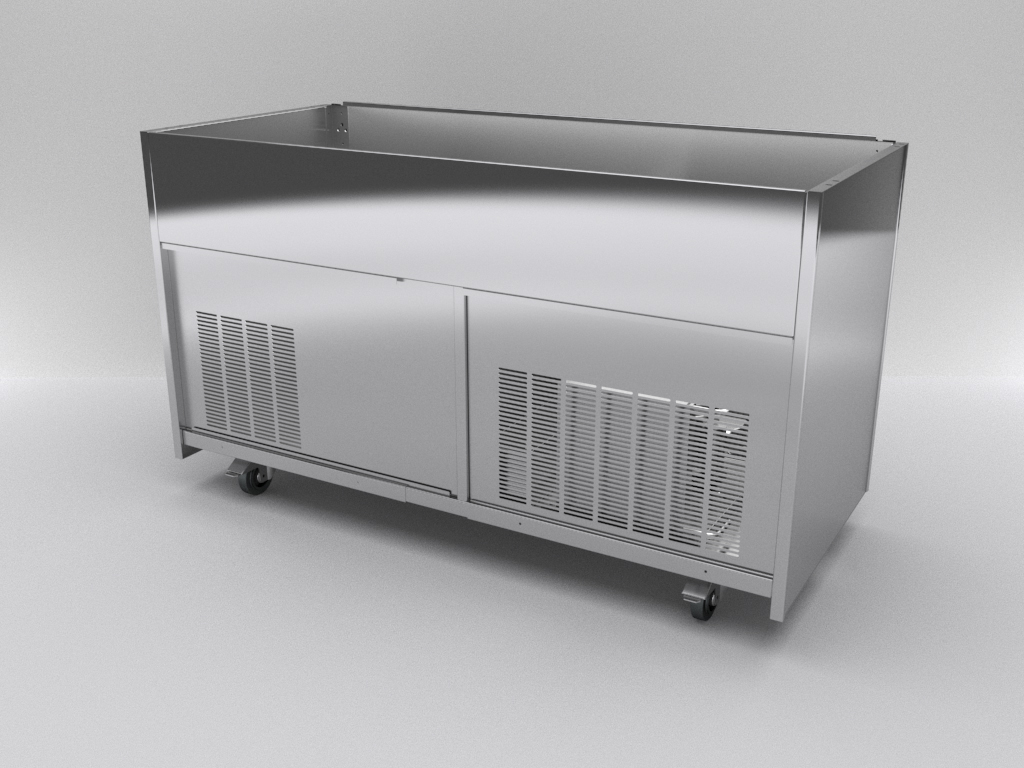

chilled cupboard: rear air flow
• Accepts all integrale, da vinci and manhattan standard width displays.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
• Chilled displays have full internal airflow ducting with inlet.
• All units mounted on four 100mm diameter castors, two lockable.
| Stock | Capacity | Overall Size | Weight | Wattage |
| Code | gn | mm | kg | kw |
| Standard Base Unit | ||||
| DC-C3AF | 3/1 | 1175(w) x 660(d) x 900(h) | 57 | N/A |
| DC-C4AF | 4/1 | 1525(w) x 660(d) x 900(h) | 71 | N/A |
| DC-C5AF | 5/1 | 1875(w) x 660(d) x 900(h) | 80 | N/A |
| Wide Base Unit | ||||
| DC-CW3AF | 4/1 | 1175(w) x 810(d) x 900(h) | 70 | N/A |
| DC-CW4AF | 4/1 | 1525(w) x 810(d) x 900(h) | 88 | N/A |
| DC-CW5AF | 5/1 | 1875 (w) x 810(d) x 900(h) | 90 | N/A |
Downloads: DWG
DC-C3AF
DC-C4AF
DC-C5AF
DC-CW3AF
DC-CW4AF
