Optional extras
All Displays
Glass edge protection (per edge).
Full height front glass and ends for assisted service.
Supply lead (length)- 3.5 metre as standard. For lengths greater than 3.5m please specify.
Export packing case.
Glass edge protection (per edge).
Full height front glass and ends for assisted service.
Supply lead (length)- 3.5 metre as standard. For lengths greater than 3.5m please specify.
Export packing case.
We strongly recommend the purchase of export packing cases for goods exported outside of mainland UK.
Gantry controllers are installed operator side (GO) as standard, but can be installed customer side (GC) on request- Not available for enclosed displays.
Chilled Displays
Non standard air ow kit for condensing unit.
Non standard air ow kit for condensing unit.
Heated Displays
Drop-on 1/1 carving plate.
Drop-in 1/1 ceran converter for bain marie.
Drop-on round carving plate, adaptor and containers (Not available on deli).
Drop-on 1/1 carving plate.
Drop-in 1/1 ceran converter for bain marie.
Drop-on round carving plate, adaptor and containers (Not available on deli).
Cutlery Condiment Displays
Full set of stainless steel containers.
Set of two 1/1 inclined collars.
Full set of stainless steel containers.
Set of two 1/1 inclined collars.
Chilled Multideck Displays
Fixed back option saving.
Shelf edge ticket strips (clear).
Fixed back option saving.
Shelf edge ticket strips (clear).
Refrigerant
All chilled units come with R404A as standard refrigerant with R290 available upon request
All chilled units come with R404A as standard refrigerant with R290 available upon request
Standard technical specifications
All Displays
General construction from 304 and 430 grade polished stainless steel. Curved toughened glass overshelf/sneeze screen.
Full internal fuse protection.
Electronic controllers located in gantry as standard.
General construction from 304 and 430 grade polished stainless steel. Curved toughened glass overshelf/sneeze screen.
Full internal fuse protection.
Electronic controllers located in gantry as standard.
Heated Displays
Quartz top heat controlled by stepless electronic energy controller.
Lower heat rod elements on bain marie controlled electronically.
Lower heat mat elements on ceran hotplates controlled electronically.
Designed to take GN containers up to 150mm deep in all bain marie displays.
Quartz top heat controlled by stepless electronic energy controller.
Lower heat rod elements on bain marie controlled electronically.
Lower heat mat elements on ceran hotplates controlled electronically.
Designed to take GN containers up to 150mm deep in all bain marie displays.
Chilled Displays
Chilled by recirculated cold air using fan blown evaporator.
Integral condensing unit and automatic condensate evaporator.
Resettable high pressure safety switch.
Digital electronic temperature control.
Display temperature 3-5°C in 25°C ambient at 50% relative humidity.
Standard air ow comes in from the customer side and out of the operator side.
The angle of the display deck can be adjusted for enhanced presentation.
Chilled Wells are designed to take 65mm deep (max) GN containers.
Chilled by recirculated cold air using fan blown evaporator.
Integral condensing unit and automatic condensate evaporator.
Resettable high pressure safety switch.
Digital electronic temperature control.
Display temperature 3-5°C in 25°C ambient at 50% relative humidity.
Standard air ow comes in from the customer side and out of the operator side.
The angle of the display deck can be adjusted for enhanced presentation.
Chilled Wells are designed to take 65mm deep (max) GN containers.
Power Supplies
All units are supplied with a 3.5m lead as standard, suitable for use with a 220/240volt supply.
We strongly recommend that the supply is protected by a suitably rated residual current protection device.
All units are supplied with a 3.5m lead as standard, suitable for use with a 220/240volt supply.
We strongly recommend that the supply is protected by a suitably rated residual current protection device.
Wattage
Units range from 1.2 kw to 6.3kw.
Units up to 3kw are supplied complete with 13amp plug-top.
Items above 3kw will need to be hardwired or fitted with commando plug.
Units range from 1.2 kw to 6.3kw.
Units up to 3kw are supplied complete with 13amp plug-top.
Items above 3kw will need to be hardwired or fitted with commando plug.

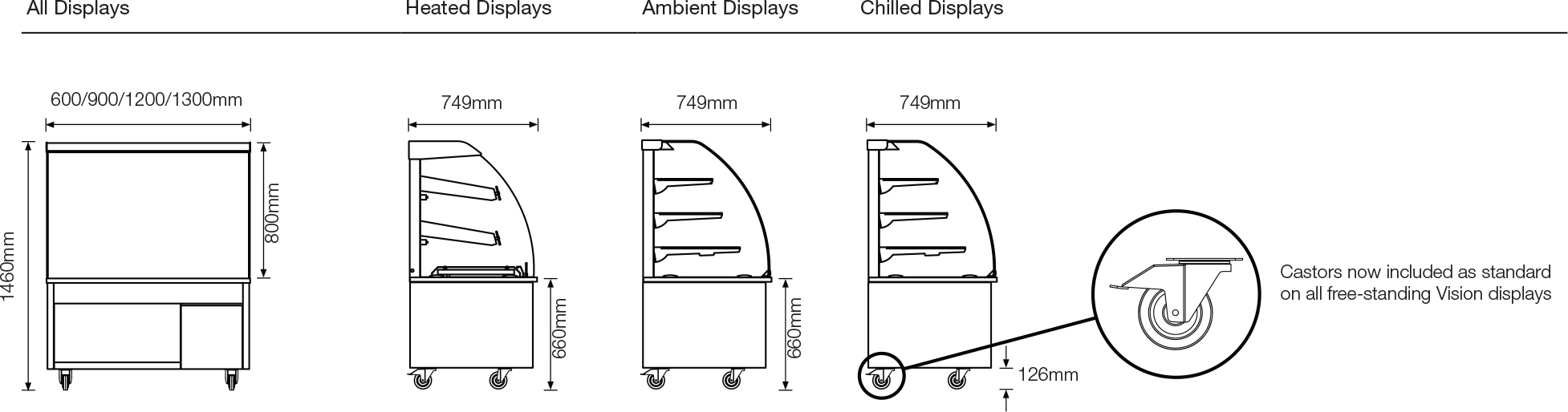

Vision Free-Standing Displays

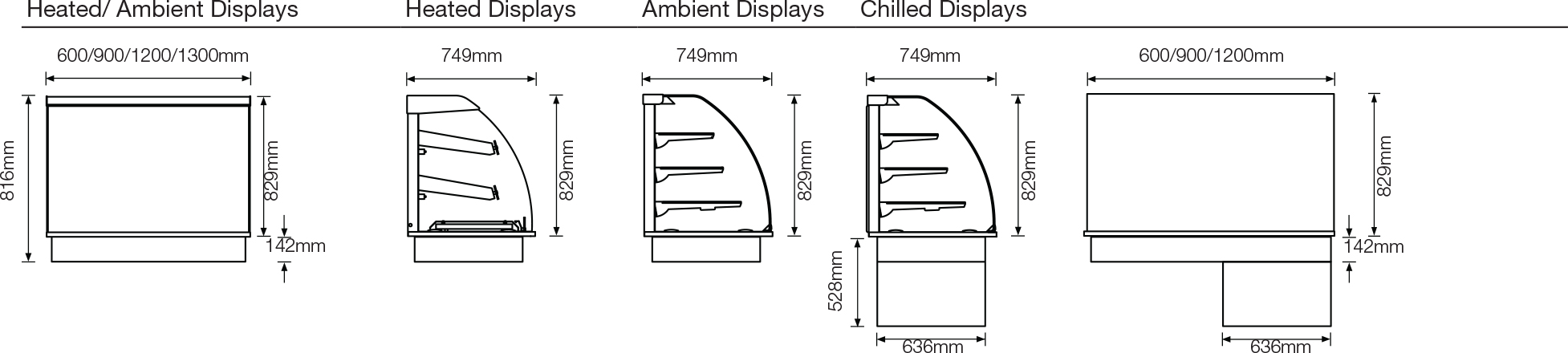

Vision Drop-In Displays

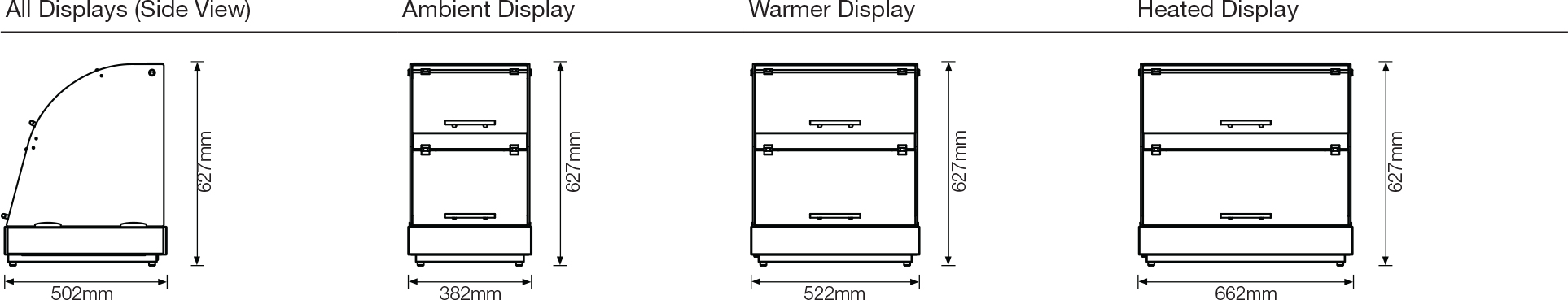

Vision Buffet Displays

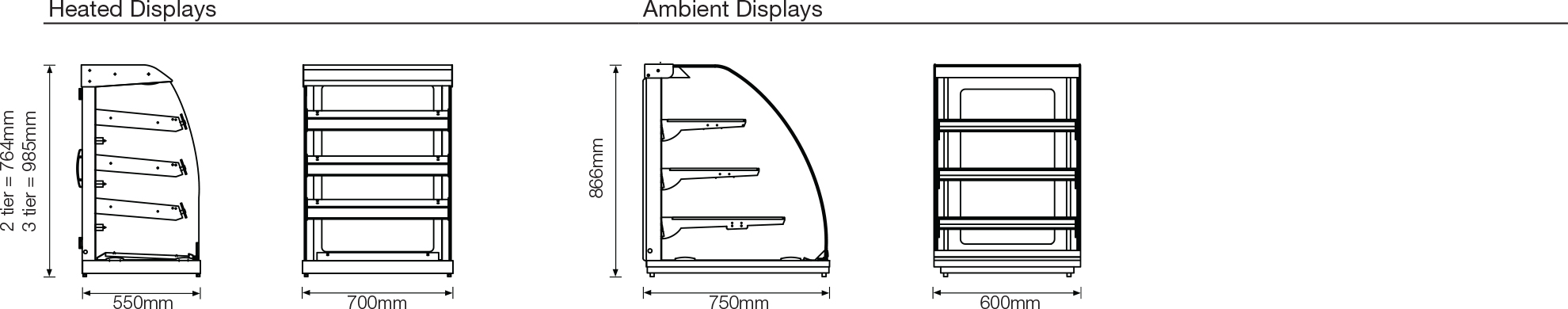

Vision Table-Topper Displays
